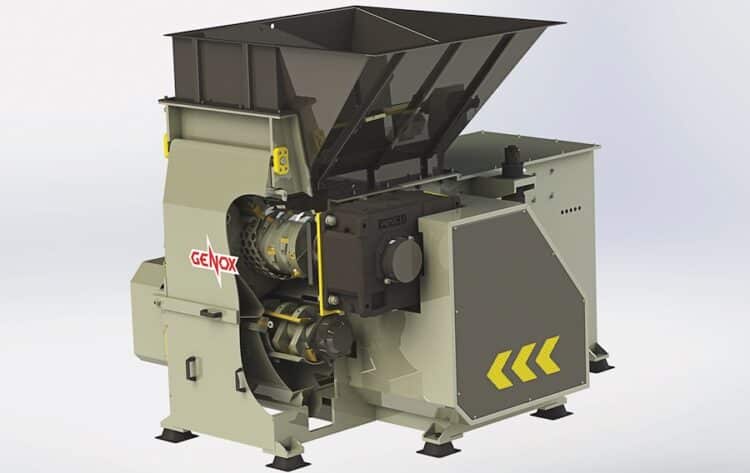

The GENOX GCV Series Shredder-Granulator Combo is a unique, integrated processing system that combines both primary shredding and secondary granulation into a single machine.
Highly compact, it’s designed to process a wide variety of plastic materials, including plastic rubber lumps, plates, scrap, frames, pipes, and polyethylene terephthalate (PET) bottles.
The machine’s design eliminates the need for external conveying equipment between the two stages, resulting in a significantly reduced footprint and outstanding cost performance.
The upper section is dedicated to shredding, featuring a rotor shaft with closely arranged small blades and a forced feeding mechanism. The lower section provides the crushing area, where the rotor shaft and feeding mode can be tailored based on the material’s characteristics and desired output.
The GCV800 model offers an 800-millimetre shredding operation length, powered by a 37-kilowatt motor, and features 35 rotating and four counter knives. The final crushing stage, driven by a 30-kilowatt motor, achieves a crushing screen diameter of 12 millimetres for fine output.
For more information, visit: www.appliedmachinery.com.au
