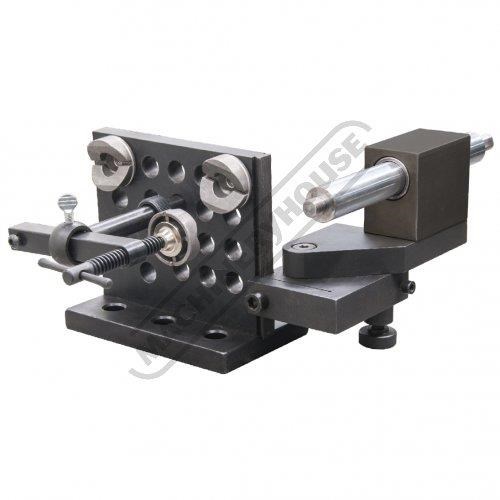

BUILDPRO ATN100M

ATN100M Modular Pipe & Tube Notcher Adjustable Cutting Angle Up To 90?? ??25 - ??63.5mm OD Tube Capacit

BUILDPRO ATN100M Modular Pipe & Tube Notcher Adjustable Cutting Angle Up To 90?? ??25 - ??63.5mm OD Tube Capacity & 2`` NB Pipe Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08180

Notch tubes and pipes at the accurate angle and length.

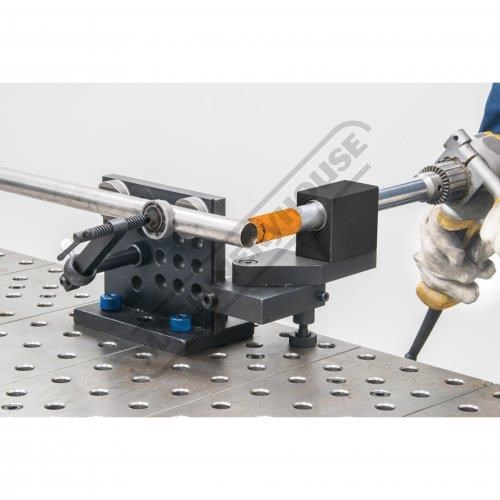

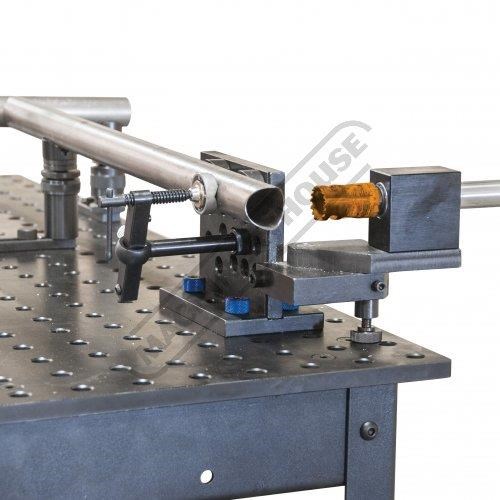

The 1st notch in a tube or pipe is easily completed with a drill press. The BuildPro?? Tube & Pipe Notcher makes alignment and length control of the 2nd notch easy to complete accurately.

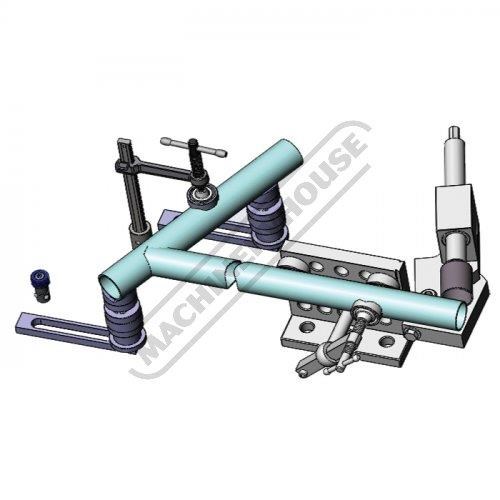

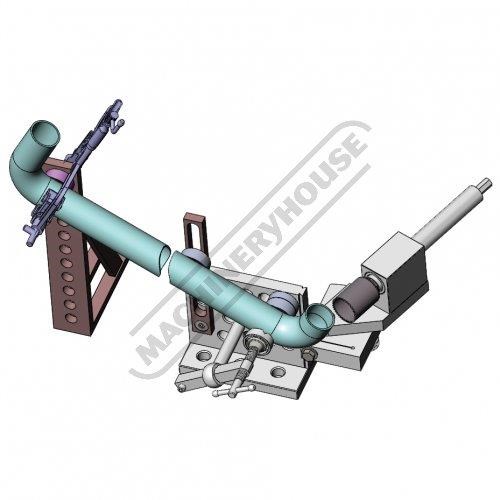

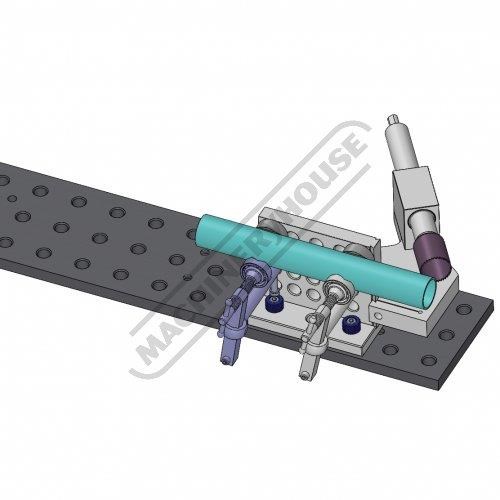

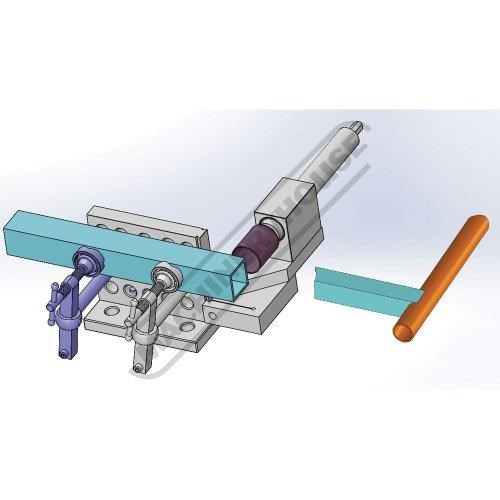

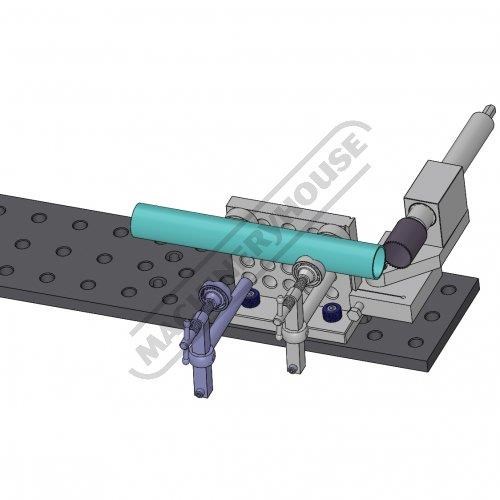

Notch ??25 - ??63.5mm OD pipes or square tubes at any angle, or off-center. Position the two V-Blocks and clamp as needed.

Features:
The V-Pads have a soft face to protect the pipe or tube surface
The cutter centrerline is height adjustable to accommodate a wide variety of workpieces
Adjust cutting angle up to 90??
Works with 12mm drill
Accepts hole saw thread sizes: 1/2``-20 5/8``-18
25mm steel shaft
Double bearing block

• Mounting hardware not included

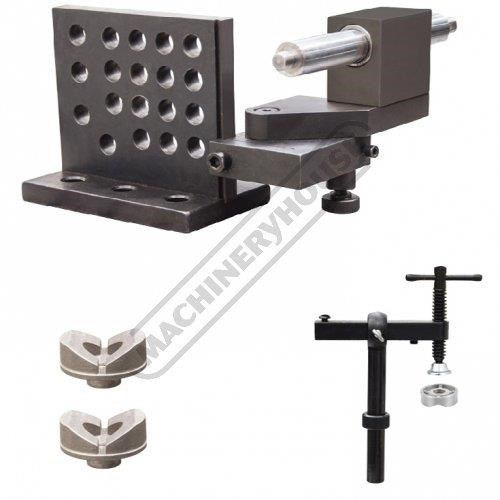

Includes:
- 1 pc. BuildPro?? Tube & Pipe Notcher
- 2 pcs. Aluminium V-Blocks for tube locating

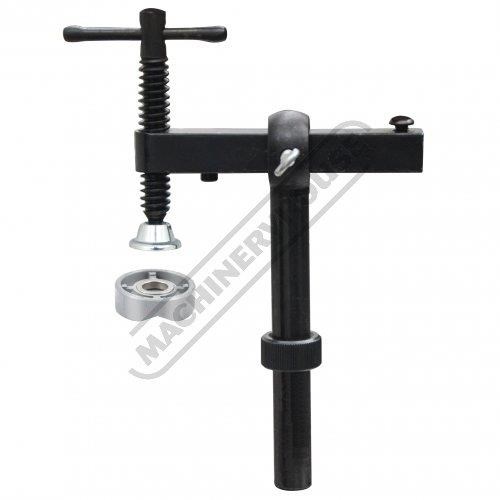

- 1 pc. Clamp with Magnetic V-Pad


Specifications:
ORDER CODE: W08180
MODEL: ATN100M
Machine (Type): Modular Pipe & Tube
Machine (Type): Notcher Attachment
Notching Cutter (Type): Hole Saw (Optional)
Tube Capacity (OD) - Mild Steel (mm): ??25 - ??63.5
Pipe Capacity (NB) - Mild Steel (inch / mm): ??2``

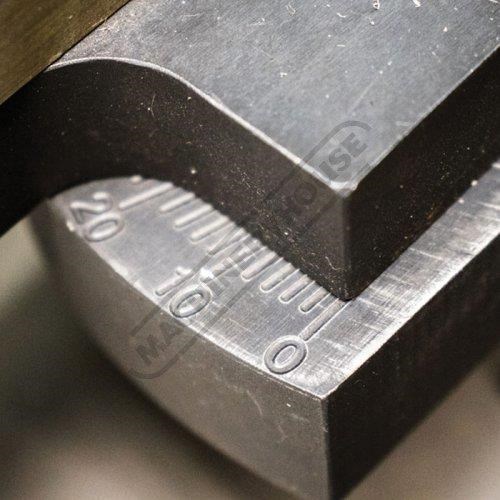

Angle Adjustment (Degree): 0 - 90??
End Mill Size (inch / mm): ~
Belt Size (mm): ~
Belt Speed: ~
Cutting Speed (rpm): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Dimensions ((mm)): 280 x 280 x 160
Nett Weight (kg): 9.1
