CATERPILLAR 272D2

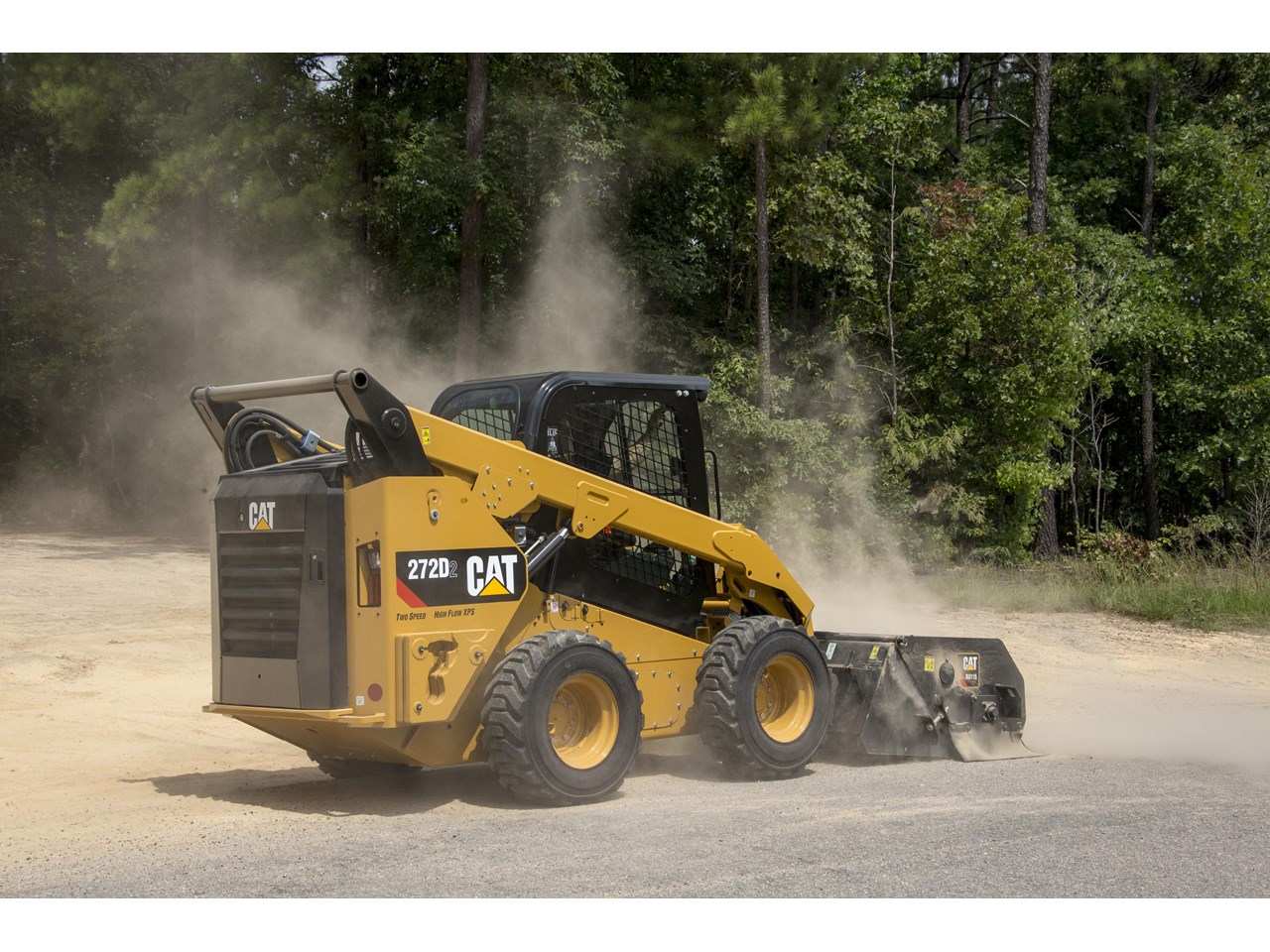

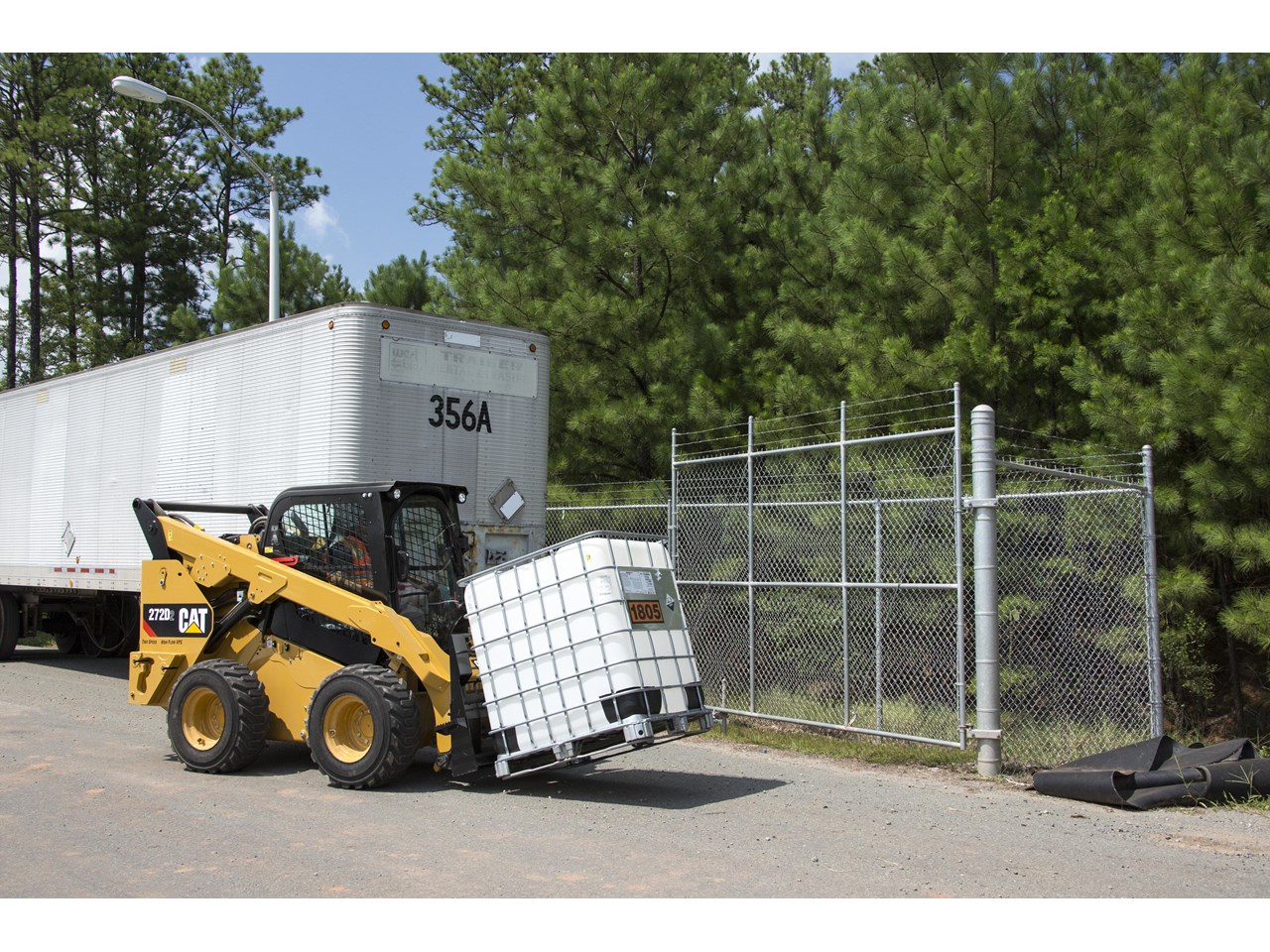

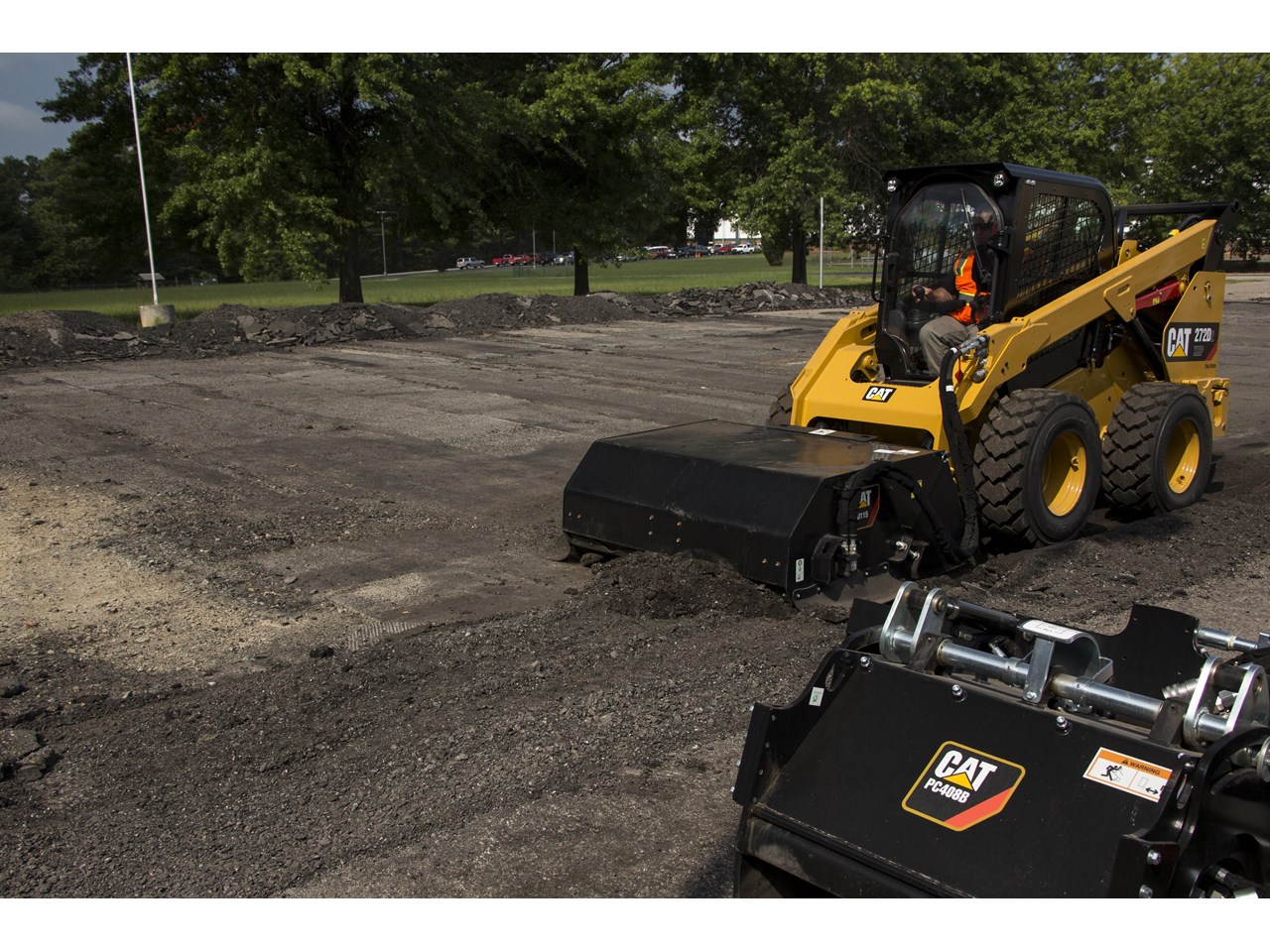

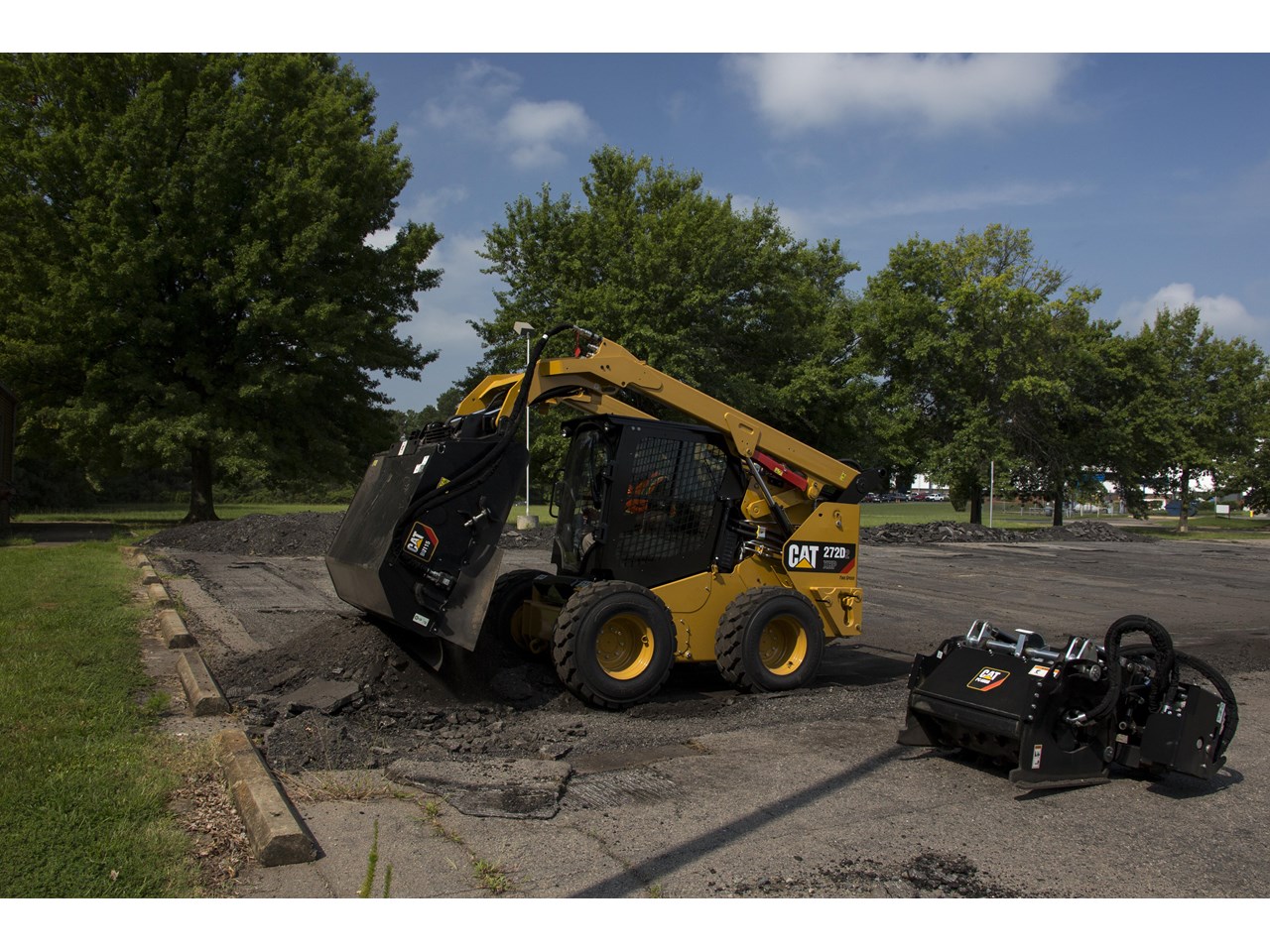

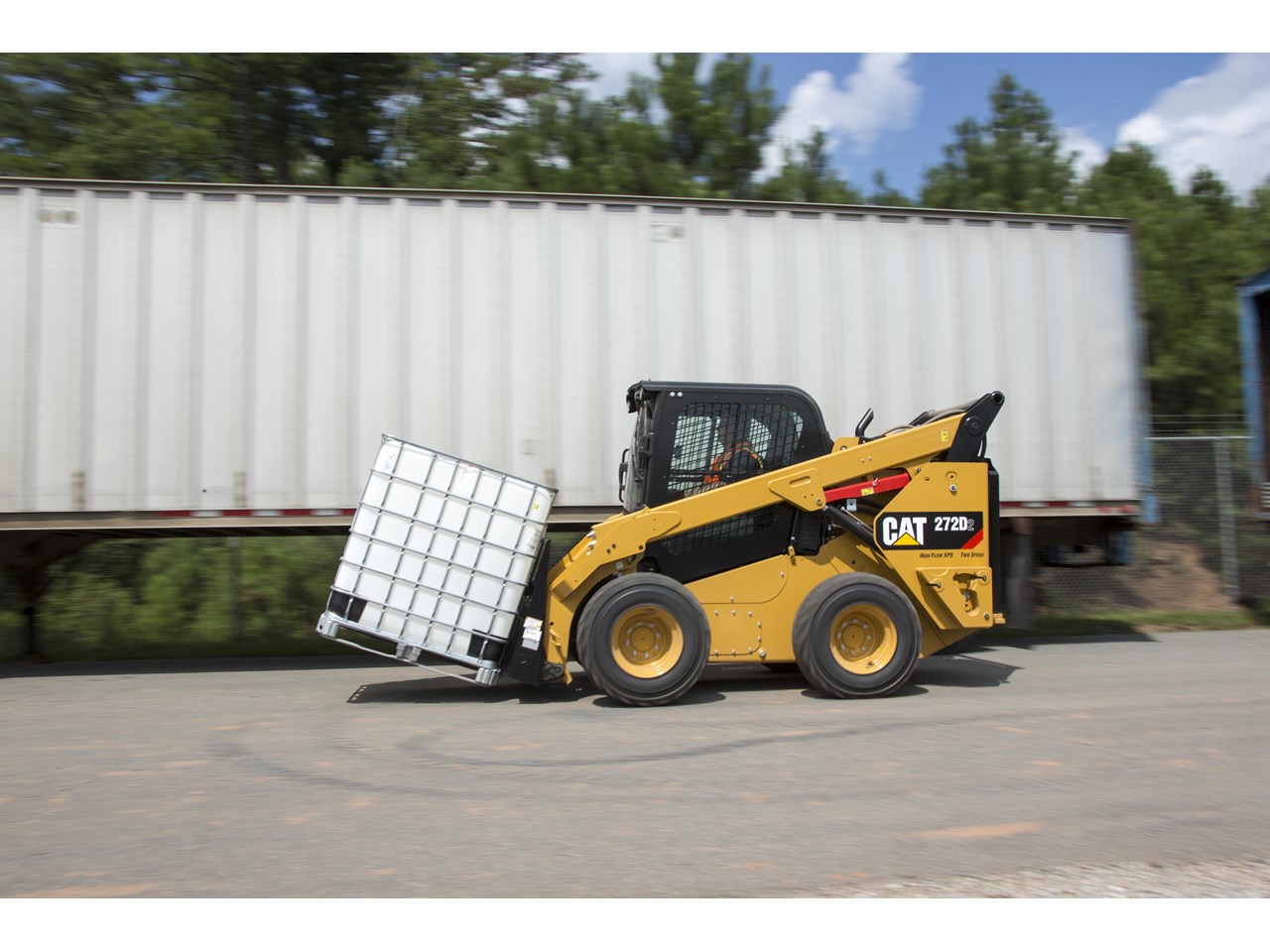

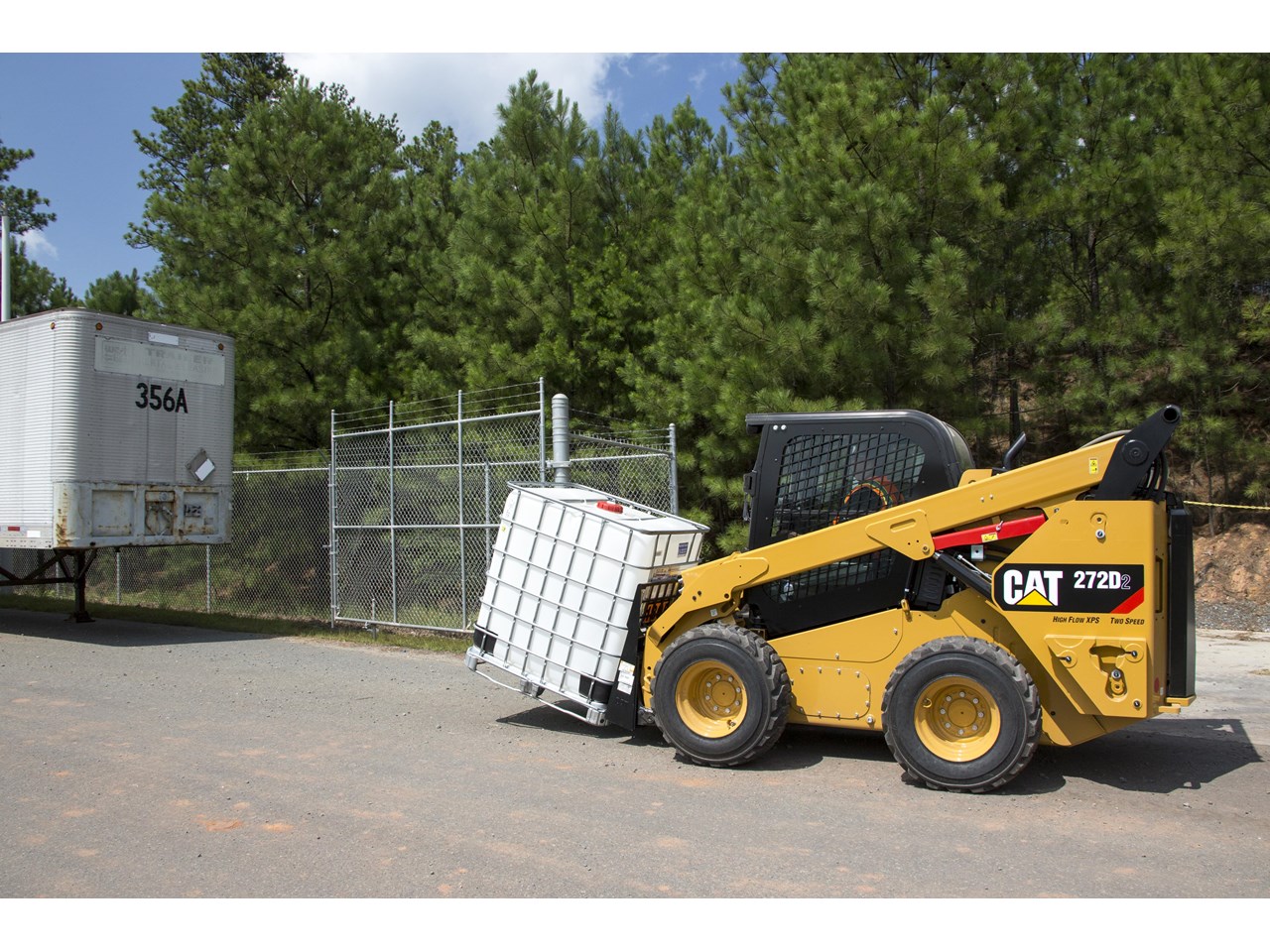

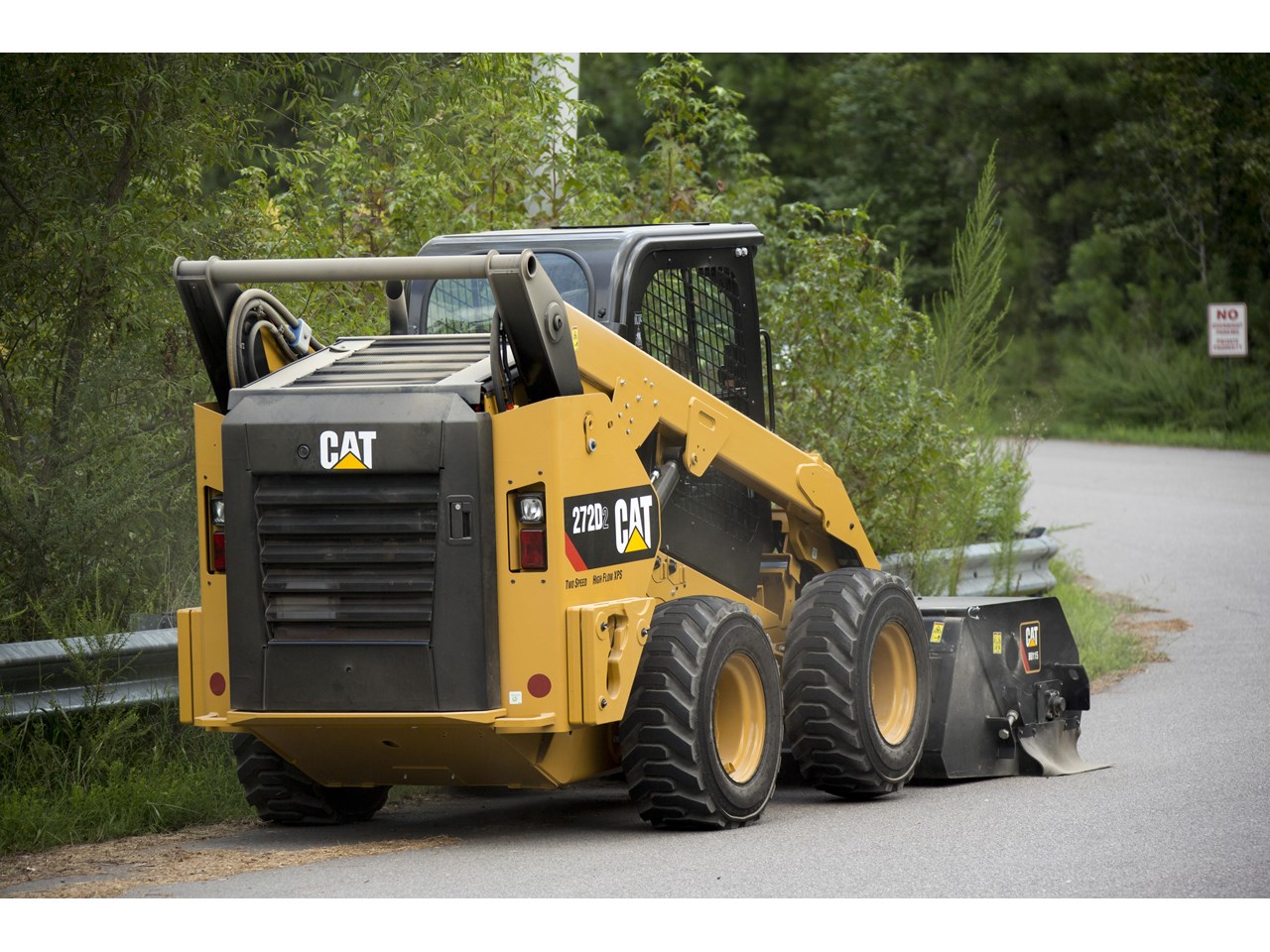

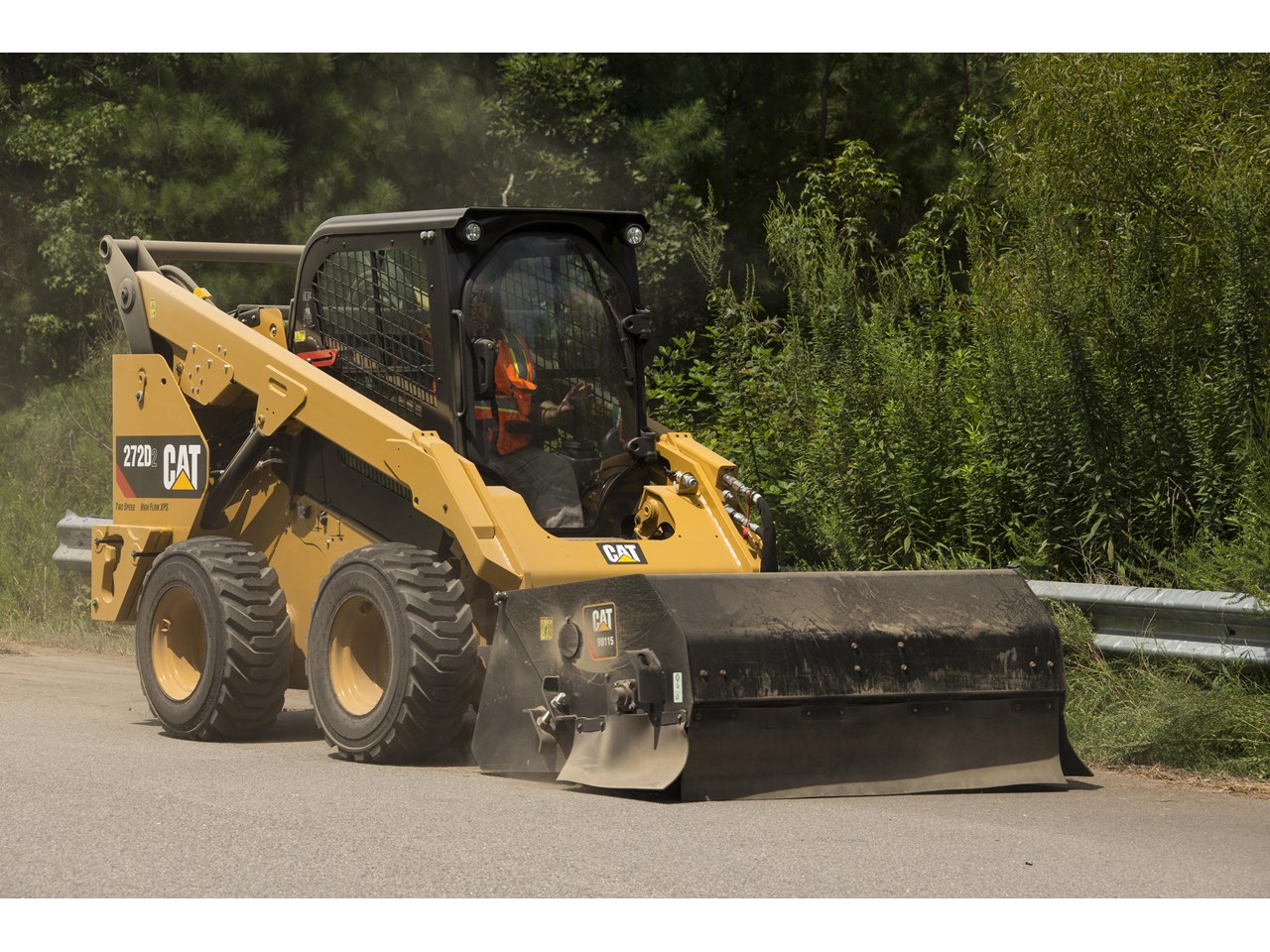

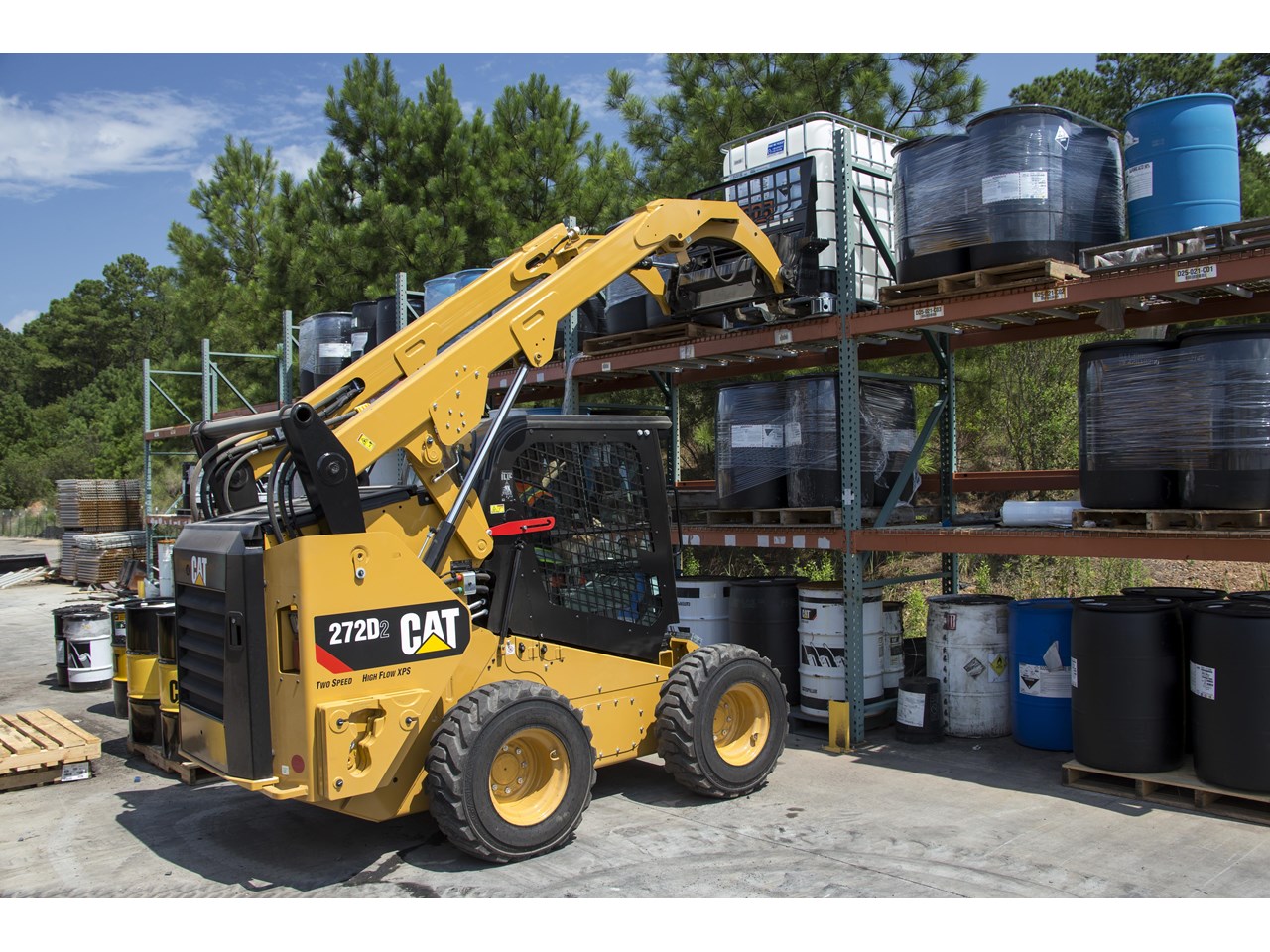

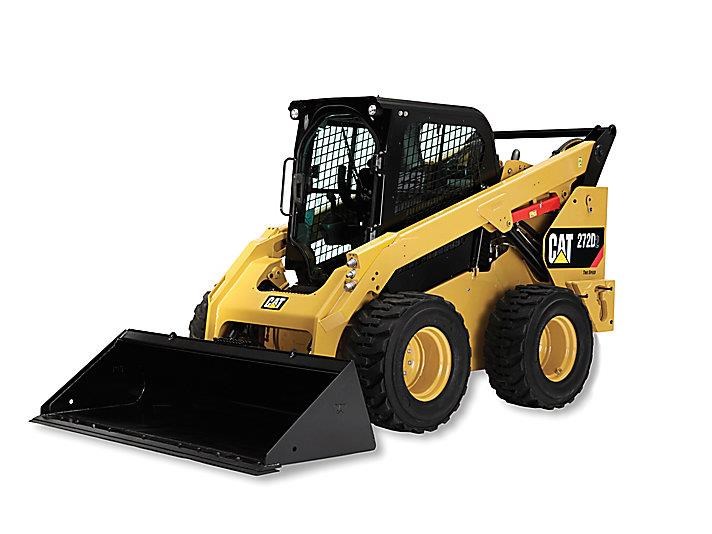

CATERPILLAR?? 272D2 SKID STEER LOADER OVERVIEW The Cat?? 272D2 Skid Steer Loader, with its long wheel base and vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling. ENGINE UNITS: US METRIC Engine Model - Cat C3.8 DIT (turbo) Net Flywheel Power - 71.0 kW Gross Power - SAE J1995 - 73.0 kW Net Power - SAE 1349 - 71.0 kW Displacement - 3.8 l Stroke - 120.0 mm Bore - 100.0 mm Net Power - ISO 9249 - 71.0 kW Peak Torque - 1,500 rpm - SAE J1995 - 334.0 N??m WEIGHTS Operating Weight - 3977.0 kg Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 880 CCA battery, 1829 mm (72 in) dirt bucket, no optional counterweights, Cat PC 12 ?? 16.5 tires and manual quick coupler (unless otherwise noted). COMFORTABLECAB Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes Cat Skid Steer Loaders the industry leader in operator comfort. ADVANCED DISPLAY Maximize machine capability and control with the standard Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera. POWERFUL PERFORMANCE High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an electronic hand/foot throttle with decel pedal capability. High Flow XPS hydraulic system is available for applications that demand maximum hydraulic work tool performance. Electronically controlled Cat C3.8 engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final/EU Stage IV emission standards. Cat ???Intelligent Leveling??? system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner. RIDE CONTROL Speed Sensitive Ride Control option improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. OUTSTANDING VERSATILITY Broad range of performance matched Cat Work Tools make the Cat Skid Steer Loader the most versatile machine on the job site. EASY SERVICE Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
