Features
| Title | HAFCO METALMASTER HM-48B |
| Type | Engineering - Fabrication |
| Sub Type | Mill Drill |
| Make | HAFCO METALMASTER |
| Model | HM-48B |
| Sale Price | $4,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 673074 |
| RefCode | TA1267196 |
Description

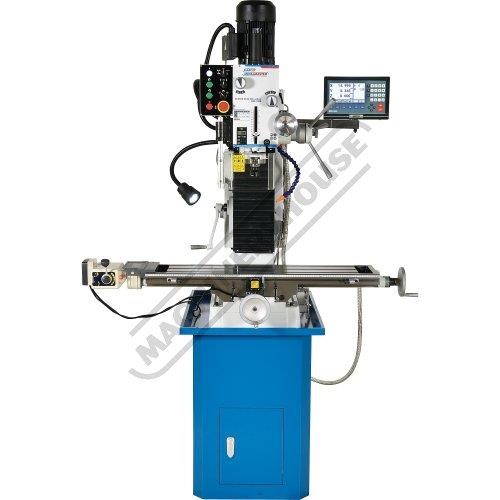

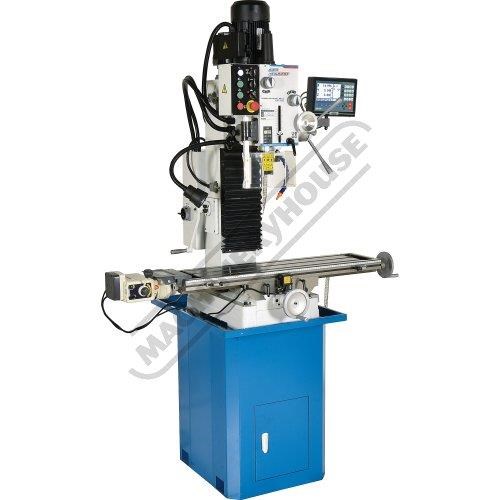

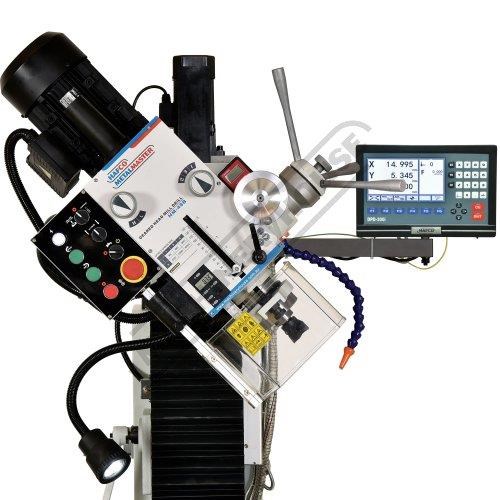

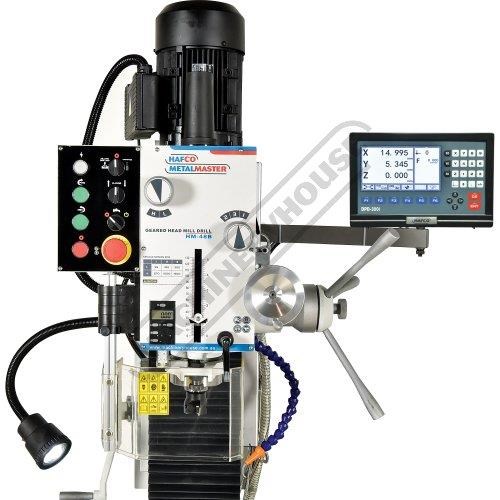

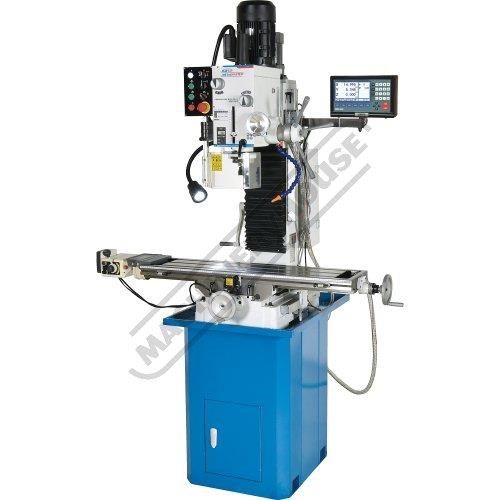

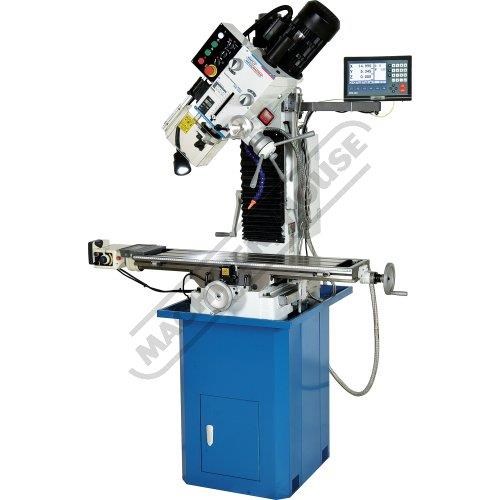

HM-48B Mill Drill - Geared & Tilting Head with Digital Readout System Table Travel: (X) - 670mm (Y)
HAFCO-METALMASTER HM-48B Mill Drill - Geared & Tilting Head with Digital Readout System Table Travel: (X) - 670mm (Y) - 205mm (Z) - 380mm Includes Digital Readout System, Dovetail Column, Power Feed & Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M141D
This NEW HM-48B milling machines is somewhat like the HM-47B model, but with the additional benefit of a large 1000 x 240mm machine worktable with more travels, an X-Axis auto power feed unit mounted to left side of the table and a motorised Z-Axis for repositioning the mill head height up or down automatically via the switches on the control panel.
The HM-48B also has a tapping function switch to allow you to control the required depth when tapping holes, a coolant pump system with flexible hose & nozzle, a halogen work light on a flexible arm to adjust the light beam as needed and a very sturdy fabricated stand with an access panel.

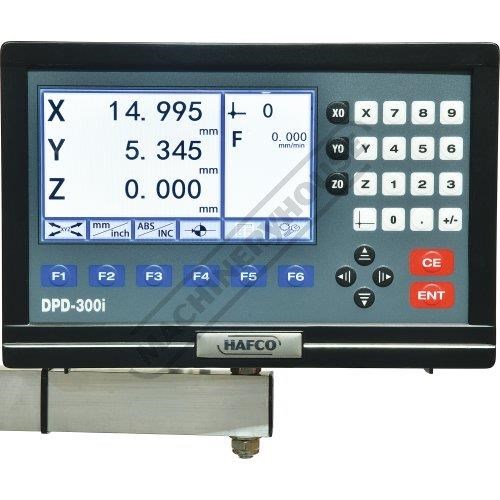

The HM-48B also has a 3-Axis digital readout system fitted for accurate table positioning in all 3 X, Y & Z Axis, 6-speeds 95-1650rpm, gear driven head which can be tilted up to 90?? either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out on different angles. The milling head is also mounted to a vertical dovetail slide system that allows the head to maintain on the exact same centre position when raising or lowering.

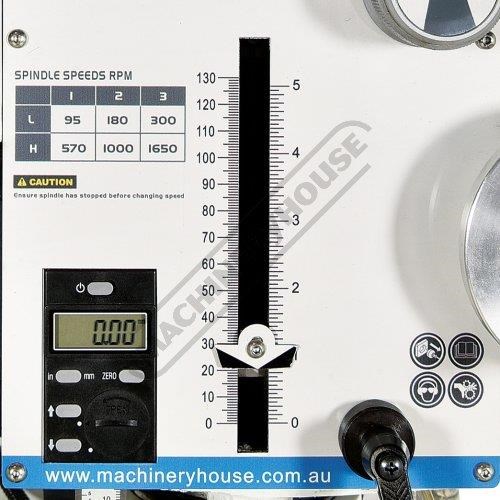

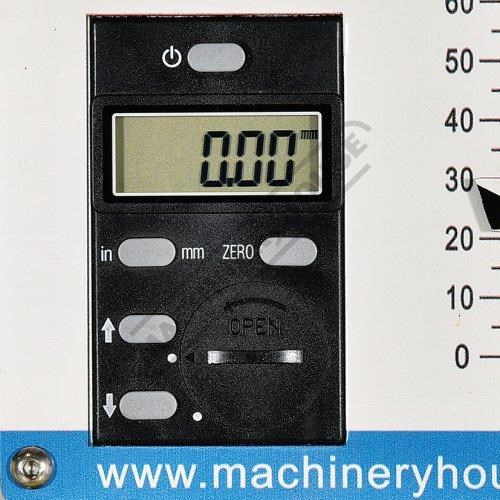

The quill movement is also coupled to a digital depth counter mounted on the face of the machine for convenience and allows you to achieve accurate drilling or milling depths. Tilting the head can be also measured accurately via the digital head gauge mounted on the right side of the mill head.
Features:
3-Axis digital readout system

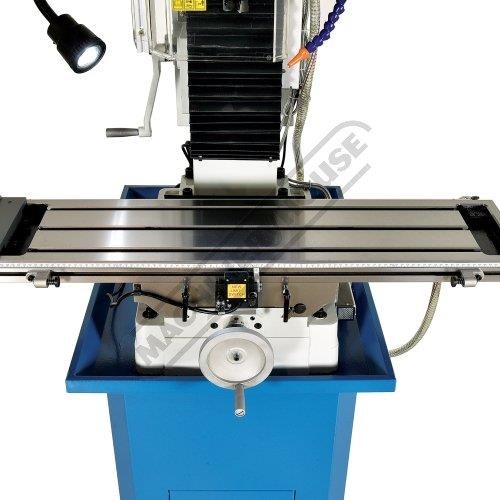

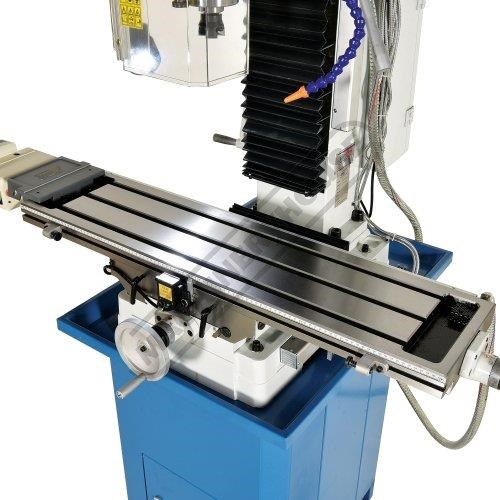

Large 1000 x 240mm ground work table with T-slots
Powerful 2HP-240V gear driven head

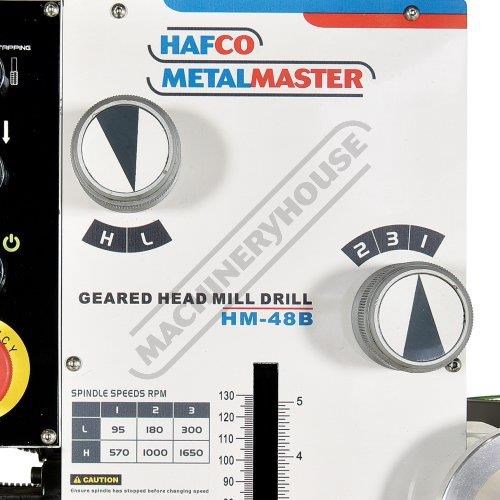

6 spindle speeds ranging from 95-1650rpm
3MT spindle with 75mm diameter lockable quill
Drilling/Milling & Tapping Functions

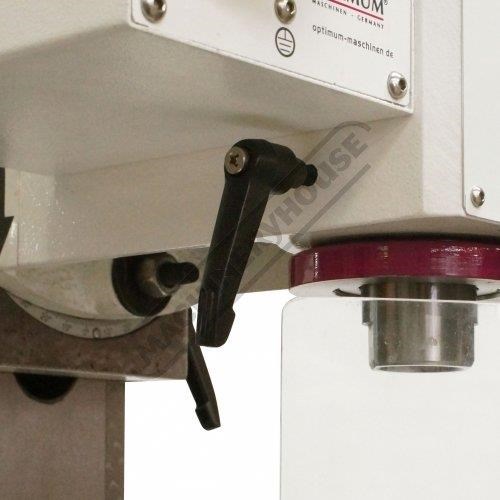

Mill head tilts up to 90?? left or 45?? right

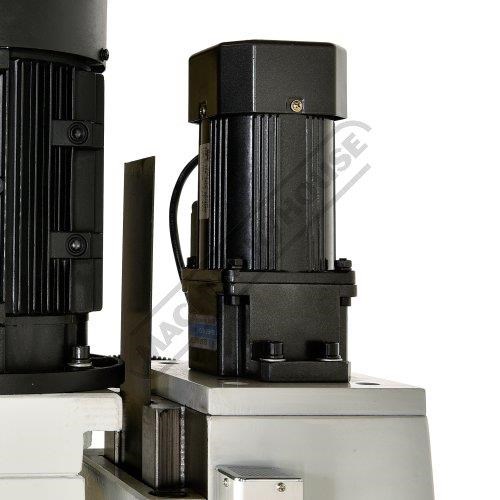

Motorised head for Z-Axis travel with dovetail slides

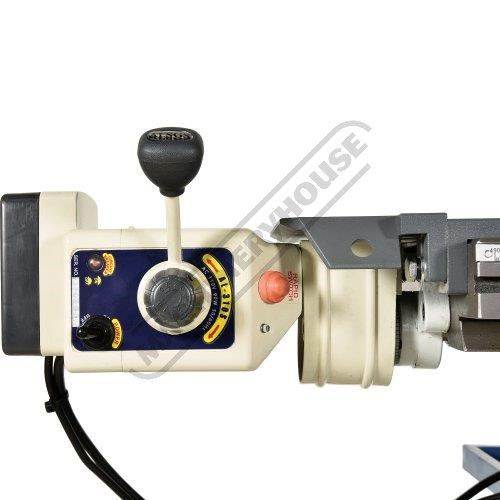

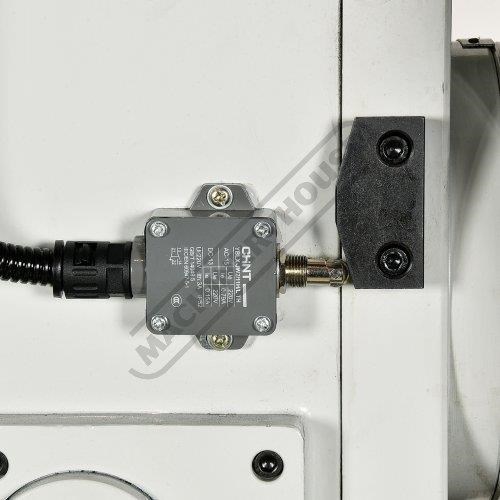

Longitudinal X-Axis power feed with adjustable micro switch feed stops
Adjustable leadscrew nuts eliminating backlash on both axis

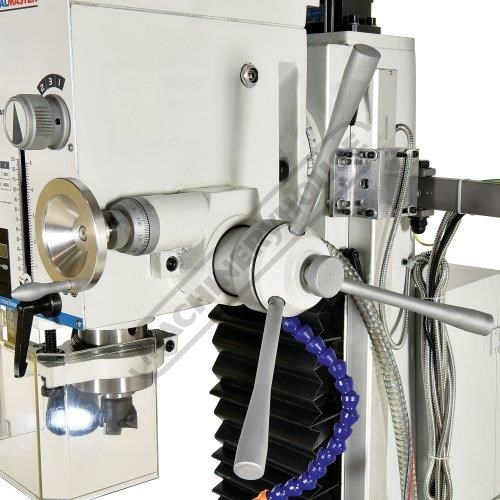

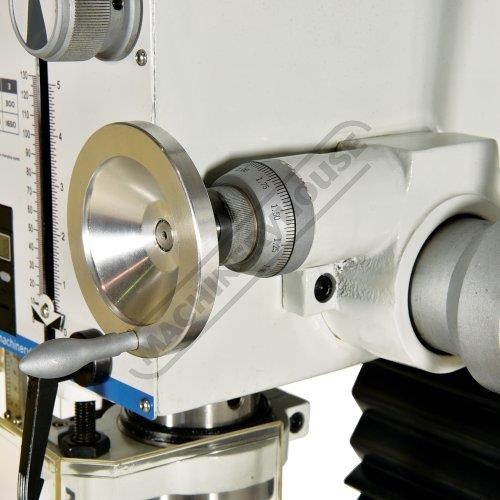

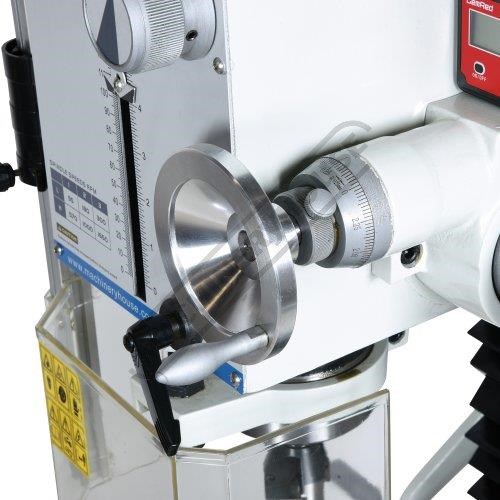

Fine down feed handwheel operating quill feed with adjustable stop
Digital depth display with zero reset for quill (Includes LR44 battery)
Digital display bevel box to set head tilting (Includes AAA battery)
Forward and reverse on/off switch
Metric dial graduations @ 0.05mm for X & Y-Axis
Rear slide-way cover and slide clamps on all axis

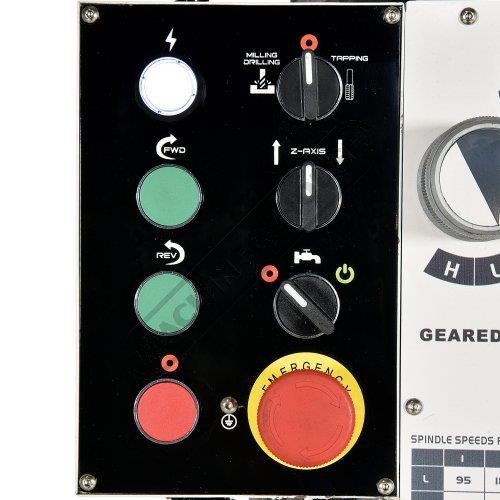

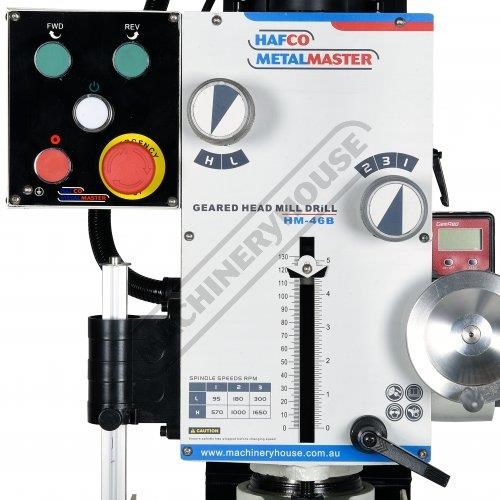

Fixed control panel
Coolant system with flexible hose
Heavy duty fabricated stand with coolant & swarf tray
Includes:
- 3-Axis digital readout system
- Heavy duty fabricated stand with coolant & swarf collection tray
- Coolant system
- X-Axis power feed unit
- Motorised Z-Axis head
- Halogen light
- Digital depth display
- Digital tilting head gauge
- Drill chuck & arbor
- Drill sleeve ??? 3MT ??? 2MT

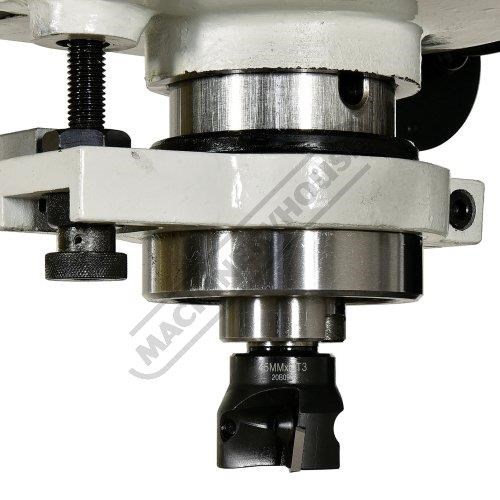

- Face cutter & arbor

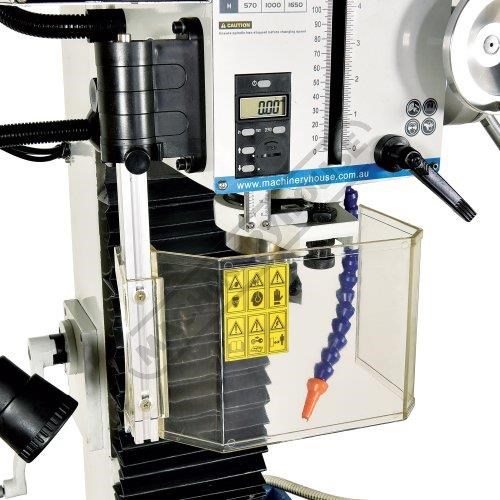

- Interlocked spindle safety guard
- 1/2`` x 12TPI drawbar
- M12 x 1.75mm drawbar
Specifications:
ORDER CODE: M141D
MODEL: HM-48B
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1000 x 240
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 670*
Cross Travel (Y-Axis) (mm): 205*
Vertical Travel (Z-Axis) (mm): 380
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 480
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 75
Throat Depth (max.) (mm): 265
Tilting Head (Left ~ Right): ??90??
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 31.5
End Milling Capacity (mm): 28
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): Yes
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): 6 (95 - 1650)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 1.5 / 2
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 450
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M141D'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
