Features

Title RUBBLEMASTER RM 120X MOBILE IMPACT CRUSHER
Make RUBBLEMASTER
Price POA
Listing Type New
Stock Number S642
RefCode TA1088685
EngineDiesel direct drive: John Deere, 6 cylinders
Engine Power - kW298 kW
Shaft Speed - rpm2200
Capacity - tonnes/h280 ~ 350 Output Potential
Number of Decks-
Working Length - mm13675
Working Width - mm4770
Screen Size (L x W) - mm3700 x 1480
Conveyor Belt Width - mm1200
Feed opening size - mm1160 x 820
Max feed size - mm950
Discharge Height - mm3600
Adjust Range of Discharge Opening - mm-
Hopper Size - m35.5
Length - mm13675
Width - mm2600
Height - mm3190
Weight - kgRM120 = 37,600, Screen Assy. = 6,400

Description

Available!

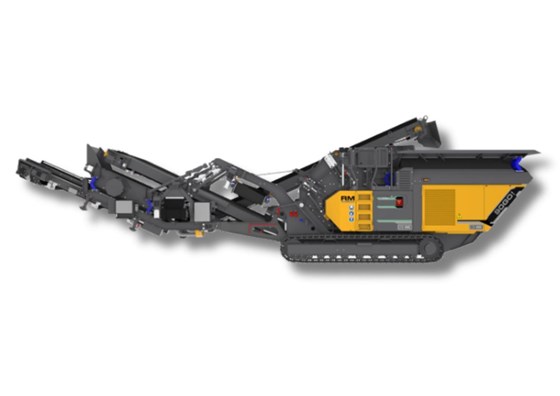

2022 RUBBLE MASTER RM120X HYBRID (DIESEL / ELECTRIC) MOBILE CRUSHER C/W SCREEN BOX & OVERSIZE RECIRC & STOCKPILE.

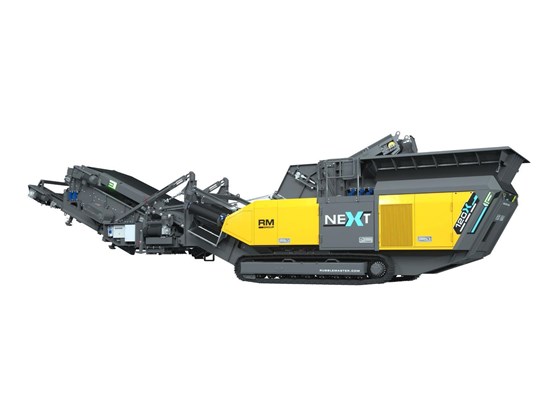

The RM Group once again sets new standards in user-friendliness with RM NEXT. As the first NEXT philosophy crusher, the RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the status of the machine from the loader cab. The Performance Indicator also enables maximum efficiency in processing without leaving the cab.

  • 4m3 One Piece Hopper C/w 2 x Vibration Motors
  • 1160x820 4 bar rotor
  • 3 rotor speed settings
  • Detachable Screen Box for Easy Transport and Servicing
  • Large 5.5m2 Screen Surface (3,700 x 1,480mm)
  • Fitted with 28mm Screen Mesh Media
  • Integrated Hydraulic Blow Bar Lifter
  • Centralised Machine Control C/w Compartment Lighting
  • Wireless Remote Control
  • Self Cleaning, Magnetic Separator
  • Water Pump for Dust Suppression
  • Up to 350 Tonne / Hour Output Potential (product dependant)
  • Feed Material Size Max 950mm (product dependant)
  • John Deer Tier 3, Constant Speed 286KW
  • Tracked and Fully Mobile
  • CSS Range: 20 - 160mm
  • Intuitive 'Push Button' Control System
  • Hydraulic Overload Protection
  • 1,200mm wide discharge belt
  • 3,600mm Discharge Height
  • Tracked and Fully Mobile
  • Weights: RM120X = 37,600kg, Screen Assy. = 6,400kg
  • E-stops
  • Fire Extinguisher
