SCHEPPACH CS-55

cs-55 Circular Plunge & Mitre Cut Saw 55mm Depth Capacity ??160mm Blade

SCHEPPACH cs-55 Circular Plunge & Mitre Cut Saw 55mm Depth Capacity ??160mm Blade
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W875

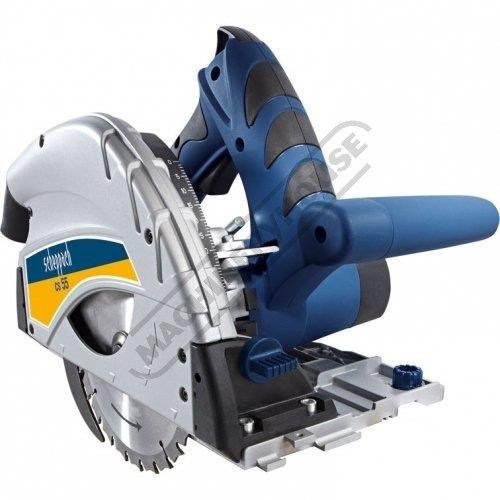

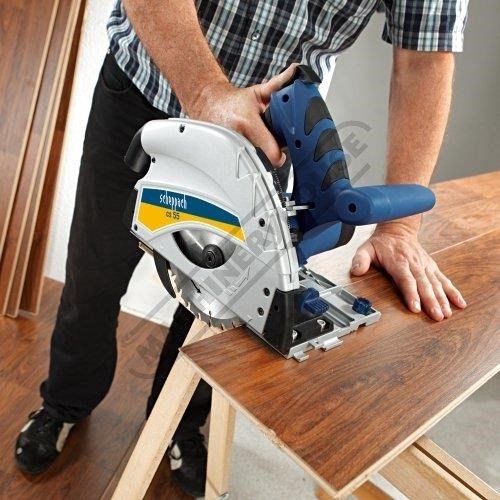

The Scheppach circular plunge cut saw cs-55 ??? ``Three Saws in One`` can be used as a plunge saw, Portable hand saw & a Panel sizing saw, anyone can get great results in the shop or on the job site.

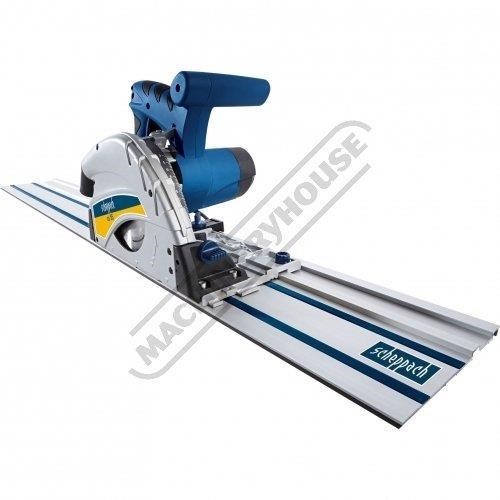

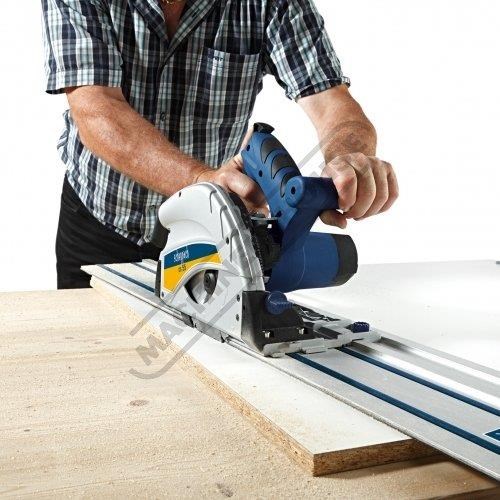

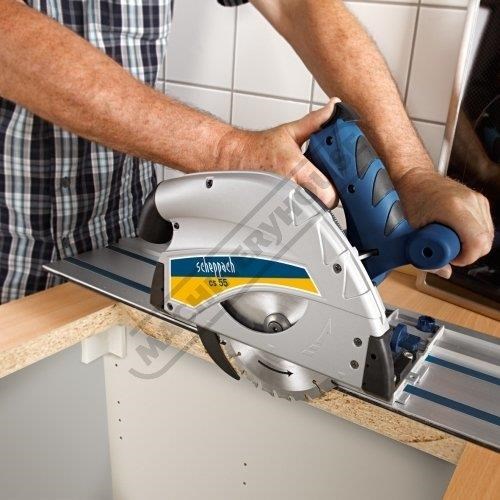

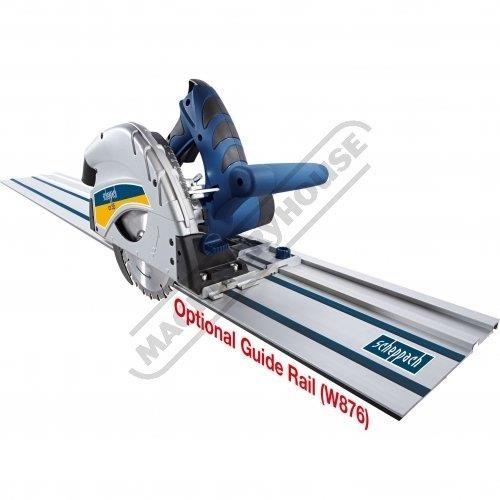

The combination of a Scheppach cs-55 parallel plunge saw with the ``optional`` guide rail allows the user to maintain a smooth and constant hand position while cutting 90?? or 45?? cuts.

Features:
German design & technology
Powerful 1.2kW / 1.6hp 240V Motor
Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
The enclosed guard gives a 90% dust extraction capability

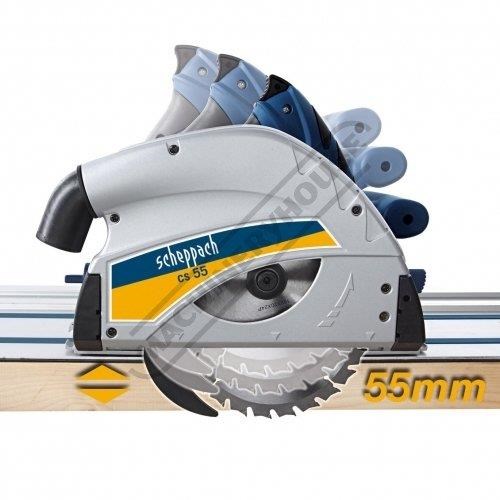

55mm @ 90?? maximum depth of cut allows the trimming and sizing of most common door sizes

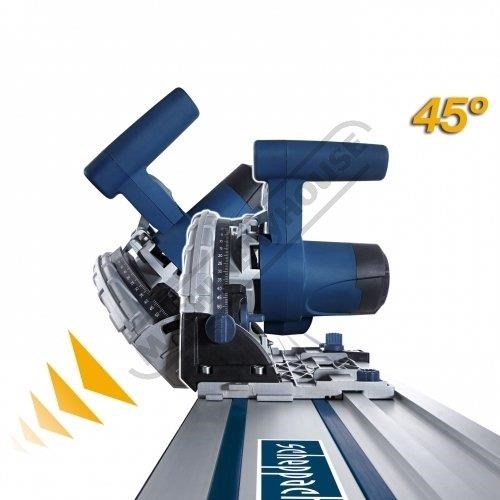

Can tilt saw head up to 45?? and will cut 41mm maximum depth
Maximum precision even when cutting free hand

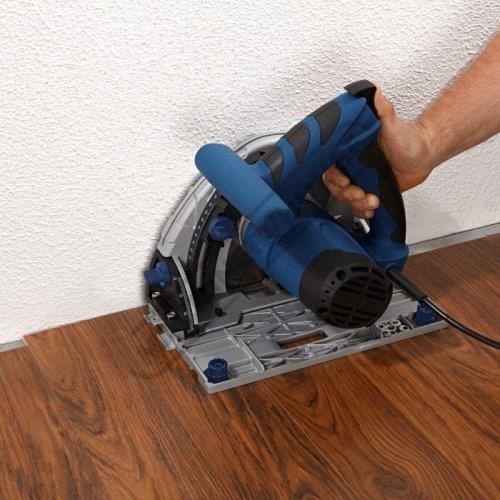

15.5mm ??? close to wall cutting is achievable with cs-55 saw
Includes 24 tooth blade that gives a fine and accurate finish with very little breakout in laminates


Specifications:
ORDER CODE: W875
MODEL: cs-55
Type: Circular Plunge Saw
Blade Diameter x Teeth (mm x T): ??160mm x 24T
Blade Thickness (mm): 2.4
Blade Bore (mm): 20
Blade Speed (rpm): 5500
Cut Depth @ 90?? - Plunge Saw only (mm): 55
Cut Depth @ 45?? - Plunge Saw only (mm): 41
Cut Depth @ 90?? - with Guide Rail (mm): ~
Cut Depth @ 45?? - with Guide Rail (mm): ~
Mitre Cutting Angle (deg): 0 - 45??
Closest to Wall Cutting (mm): 15.5
Dust Collector Connection Size (mm): 38
Voltage (V): 240
Motor Power (kW / hp): 1.2 / 1.6
Nett Weight (kg): 5.6
