Features

Title SILVAN 1,500L SUPAFLO TRAILED SPRAYER - MIN 60PTO HP
Make SILVAN
Sale Price $32,615
Listing Type New
Stock Number DAB153AF8G
RefCode TA1162142
Tractor ConnectionTrailed
Tank Capacity - l1500

Description

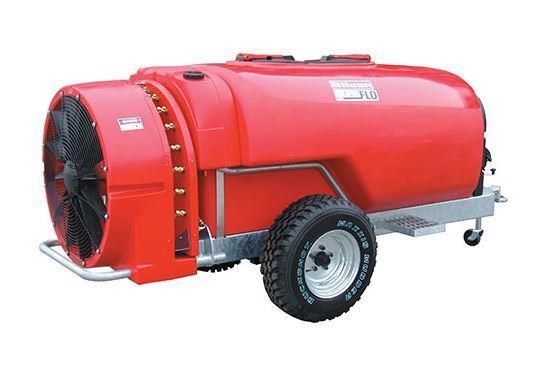

Trailed air assist Supaflo 1,500 litre sprayer with 161 L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and a 900mm fan.

Ideal for vineyards and orchards.

Specifications:

Market: Horticulture. Viticulture
Tank Size (L): 1500
Connection Type: Trailed
Min PTO HP: 60
Pump Size (L/min): 161
Height / Width / Length (mm): 1530 / 1540 / 3540
Product Weight (kg): 540 (dry)
Application: Vineyards and Orchards

Features:

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS1701:161L/min. capacity, 5000kPa pressure.

Fan size: 900mm axial flow type, 10 bladed fan with curved nylon reinforced blades, air straightening vanes and protective mesh cover. Powerhead (920mm) & Radak (1,000mm) fitted with axial flow type, 10 bladed fan, centrifugal clutch and protective mesh cover.

Nozzles: Flip-over type for dilute/concentrate spraying. Ceramic jets, stainless steel swirl-plates. 16 double sided nozzles (8 per side) twist on/off. The Powerhead has 24 double sided nozzles (12 per side) and the Radak has 32 (16 per side).

Gearbox: 2-speed with neutral position, oil-bath type

Control: 40 bar electric section valves, master valve, electric pressure regulator and in cab controls.

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip-top easy open lids, 40mm drain valve and built-in chemical mixer. 40L fresh water hand wash tank.

Frame: Galvanised steel with jockey wheel & adjustable drawbar.

Agitation: Pump bypass plus venturi agitator.

Pressure gauge: 100mm, 0-60 bar glycerine filled gauge.

Filtration: Lid strainer, suction line strainer & stainless steel nozzle filters.

Wheel Equipment: Glideflex suspension axle, 2x15" tubeless tyres on galvanised rims (max speed rating 30 km/h)

PTO Driveshaft: Quality Bondioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.

HP Required: Min 60 PTO HP

Options:

- Powerhead Conveyor (in lieu of standard fan cowling) (D99-184)
- Radak Conveyor - Manual adjustment of top and bottom wings (In lieu of standard fan cowling) (D99-135)
- Hydraulic kit for Radak Conveyor (top wings) (D99-155B)
- SCRAM Jet (to suit Radak Conveyor) (D99-180)
- One sided conveyor (D99-41)
- Leaf guard (to suit Powerhead & Radak) (D99-175)
- Twin nozzle (includes extra nozzles) (D99-182)
- Two-sided poly vineyard conveyor (D99-111)
- Bravo 180S automatic rate controller (D99-143)
- Flotation tyres - 400/60 x 15.5" with fixed axle (in lieu of standard singles) (D99-80)
