Title SILVAN 3,000L TRAILED ORCHARD SPRAYER WITH POWERHEAD FAN - MIN 80PTO HP
Make SILVAN
Sale Price $58,850
Listing Type New
Stock Number AB64PF7G
RefCode TA1162148
Tractor ConnectionTrailed
Tank Capacity - l3000

Description

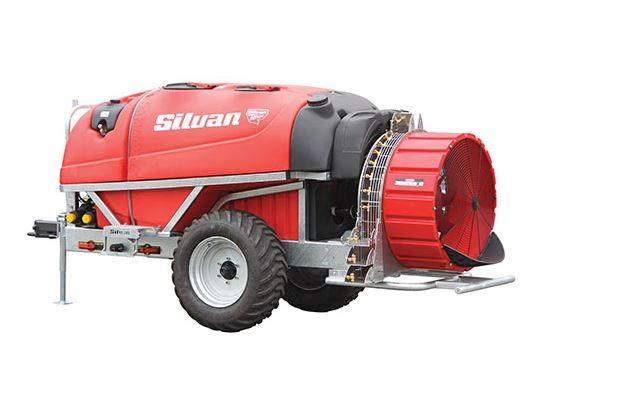

Trailed air assist 3,000 litre Orchard sprayer with 182 L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and Powerhead conveyor with 920mm fan.

Ideal for orchards with trees up to 5 metres high.

Specifications:

Market: Horticulture
Tank Size (L): 3000
Connection Type: Trailed
Min PTO hp: 75
Pump Size (L/min): 182
Height / Width / Length (mm): 1800 / 1755 / 3995
Product Weight (kg): 1,000 approx. (dry)
Application: Orchards

Features:

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads and manifolds. IDS2001: 182L/min. capacity 5000kPa pressure.

Fan Size: 920mm or 1000mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement / disengagement and protective mesh cover.

Nozzles: 24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl-plates per side. (16 per side with Radak conveyor).

Gearbox: Oil-bath type, 2-speed with neutral position

Controls: 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.

Main Tank: 3400L polytuff impact resistant polyethylene construction, calibrated sightline, flip top lid, 50mm camlock bottom fill.

Flush Tank: 205L polytuff tank with top fill. Used to flush pump, filter, spray lines and nozzles.

Hand Wash Tank: 15L polytuff tank with top fill.

Chemical Induction: Venturi suction probe.

Frame: Galvanised steel, heavy duty stand & adjustable drawbar.

Agitation: Pump bypass plus venturi agitator

Pressure gauge: Glycerine filled gauge located on valve bank.

Filtration: Suction line filter, pressure filter, nozzle cup strainers.

Wheel Equipment: Glideflex axle with 16" implement tyres (speed rating 30 km/h)

PTO Driveshaft: Quality Bondioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.

HP Required: Min 80PTO HP (920mm fan), minimum 90 PTO HP (1000mm fan)

Options:

- Hydraulic kit for Radak Conveyor (top wings) (D99-155B)
- SCRAM Jet (to suit Radak conveyor) (D99-180)
- Leaf guard (to suit Powerhead & Radak) (D99-175)
- Double spray lines (Powerhead - includes upgrade to 1000mm fan) (D99-189)
- Double spray lines (Radak) (D99-190)
- Bravo 180S automatic rate controller (D99-143)
- BKT flotation tyres - 558-400/55 - 22.5 (in lieu of standard singles) (D99-79)
- IDS2600 pump,249L/min. capacity, 5000kPa pressure (D99-149)
