Features

Title SILVAN 3,500L SUPAFLO TRAILED SPRAYER - MIN 80PTO HP
Make SILVAN
Sale Price $41,129
Listing Type New
Stock Number DAB33AF7G
RefCode TA1162150
Tractor ConnectionTrailed
Tank Capacity - l3500

Description

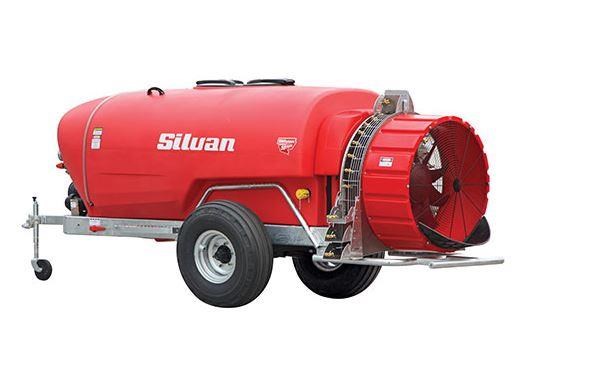

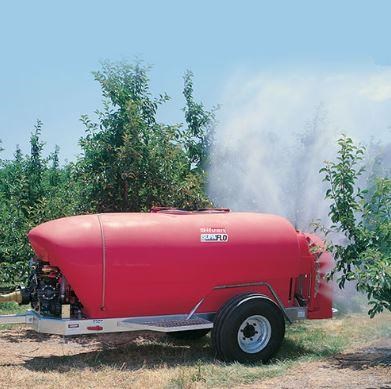

Trailed air assist Supaflo 3,500 litre sprayer with 161 L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and a 900mm fan.

Ideal for orchards with trees up to 4 metres high.

Additional model available with 249 L/min pump (DAB36AF7G).

Specifications:

Market: Horticulture
Tank Size (L): 3500
Connection Type: Trailed
Min PTO hp: 80
Pump Size (L/min): 161
Height / Width / Length (mm): 1800 / 1830 / 4755
Product Weight (kg): 800 (dry)
Application: Orchards

Features:

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, anodised cast aluminium body with brass heads and manifolds. IDS1701: 161L/min. capacity, 5000kPa pressure.

Fan Size: 900mm axial flow type, 10 bladed fan with curved nylon reinforced blades with air straightening vanes and protective mesh cover. Powerhead and Radak fitted with 920mm axial flow type, 10 bladed fan, centrifugal clutch and protective mesh cover.

Nozzles: Flip-over type for dilute/concentrate spraying. Ceramic jets, stainless steel swirl-plates. 16 double sided nozzles (8 per side) twist on/off. The Powerhead has 24 double sided nozzles (12 per side) and the Radak has 32 (16 per side).

Gearbox: Oil-bath type, 2-speed with neutral position

Controls: 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, built-in chemical mixer and 40L fresh water hand wash tank. Camlock bottom fill.

Frame: Galvanised steel with jockey wheel and adjustable drawbar.

Agitation: Pump bypass plus venturi agitator

Pressure gauge: Glycerine filled gauge located on valve bank.

Filtration: Lid strainer, suction line filter and nozzle cap strainers.

Wheel Equipment: Glideflex suspension axle fitted with 16" tyres and galvanised rims (speed rating 30 km/h)

PTO Driveshaft: Quality Bondioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.

HP Required: Min 80PTO HP

Options:

- Powerhead Conveyor (in lieu of standard fan cowling) (D99-184)
- Radak Conveyor - Manual adjustment of top and bottom wings (In lieu of standard fan cowling) (D99-135)
- SCRAM Jet (to suit Radak conveyor) (D99-180)
- Hydraulic kit for Radak Conveyor (top wings) (D99-155B)
- Leaf guard (to suit Powerhead & Radak) (D99-175)
- Two-sided poly vineyard conveyor (D99-111)
- Double spray lines (Powerhead - includes upgrade to 1000mm fan) (D99-189)
- Double spray lines (Radak) (D99-190)
- Bravo 180S automatic rate controller (D99-143)
- BKT flotation tyres 558-400/55 - 22.5 (in lieu of standard singles) (D99-79)
- Tandem suspension axle with 10 x 15 wheels (D99-75)
- Additional model available with 249L/min pump (DAB36AF7G).
