Title SILVAN 4,000L (2 ROW) G2E TGS TRAILED SPRAYER - MIN 75PTO HP
Make SILVAN
Sale Price $110,275
Listing Type New
Stock Number ETG44NF6S2
RefCode TA1162472
Tractor ConnectionTrailed
Tank Capacity - l4000

Description

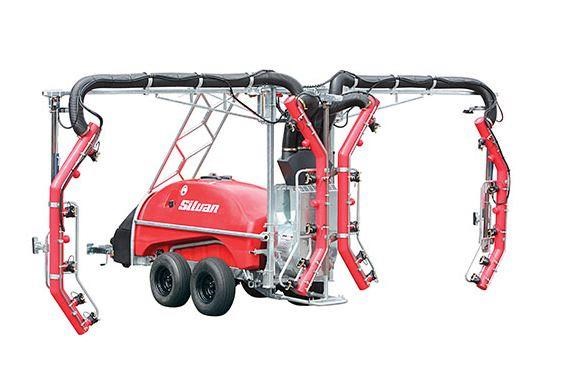

Trailed over row G2E TGS 2 row 4000 litre sprayer with 182 L/min pump, 500mm twin turbine fan and electric valve controls. Ideal for vineyards.

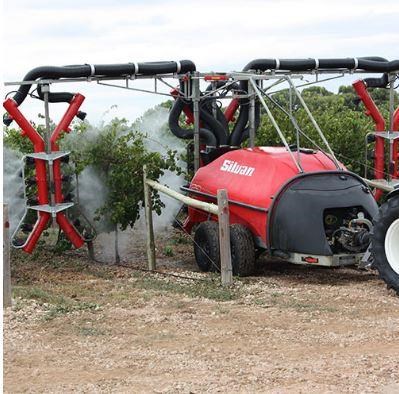

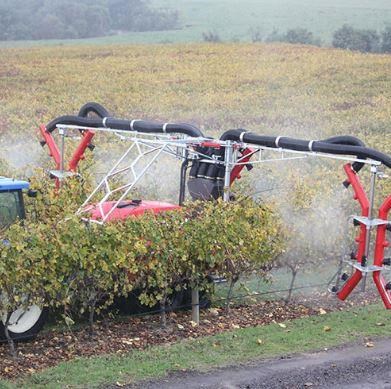

Note: infield images show the 3 row 4000L G2E TGS.

Specifications:

Market: Viticulture.
Tank Size (L): 4,000
Connection Type: Trailed
Min PTO hp: 75
Pump Size (L/min): 182
Height / Width / Length (mm): 3160 / 1935 (less head), 2490 (folded) / 5340
Product Weight (kg): 1,820 (dry)
Application: Vineyards

Features:

Head: Multi row spraying head with air assist diffusers and twin spray nozzles. Each air diffuser features swivel adjustment and air deflector. Poly air tubes shaped to surround canopy. Both arms have independent hydraulic fold with manual width & height adjustment (2 tractor remote sets required).

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifolds. IDS1701: 161L/min. capacity 5000kPa pressure. IDS2001: 182L/min. capacity 5000kPa pressure.

Fan Size: 500mm twin impeller turbine fan, power consumed 48 kw (64HP).

Nozzles: Twin hollow cone ceramic nozzles per outlet with individual on/off non-drip taps.

Gearbox: 2-speed with neutral position, oil-bath type

Controls: 40 Bar electric section valves, master valve, electric pressure regulator and in cab controls

Frame: Galvanised steel chassis, adjustable drawbar with jockey wheel.

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.

Chem Induction: Suction probe with detachable hose.

Agitation: Pump bypass plus venturi agitator.

Pressure Gauge: 0-60 bar glycerine filled gauge fitted to pump.

Filtration: Lid strainer and large capacity suction filter.

Wheel Equipment: Tandem simplicity suspension with 10 x 15" wheels & tyres. (2000L & 3000L) or 11.5 x 15.3" wheels & tyres (3500L & 4000L)

PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.

HP Required: Minimum 75 PTO HP

Options:

- IDS2600 pump, 249L/min capacity, 5000kPa pressure (D99-149)
- Bravo 180S automatic rate controller (D99-143)
- Vertical lift head assembly (1 extra set of tractor remotes required) (TGS-LIFT)
- Quick turning hitch (D99-170)
- Hydraulic row width adjustment (1 extra set of tractor remotes required) (D99-186)
- Road kit (D99-151)
