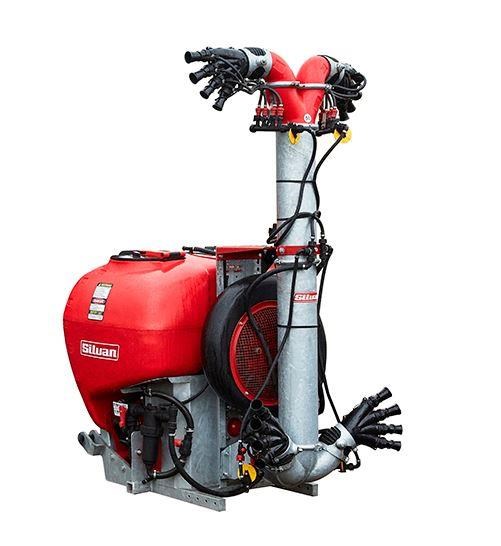

SILVAN 600L P50E LINKAGE TURBOMISER - MIN 65PTO HP (SPRAY HEAD NOT INCLUDED)

✨ New: Multi-Enquiry Feature

Submit your email enquiry, then send it to similar listings with just a click!

Phone

Contact Seller

Phone: ** **** *777
✨ New: Multi-Enquiry Feature

Submit your email enquiry, then send it to similar listings with just a click!

Email Advertiser:

For security reasons, do not select "Remember my details" if you are using a shared computer.
View our privacy policy, collection notice and terms and conditions to understand how we use your personal information.

Dealer

Farm Supplies Machinery & Equipment

54 Annie Street

Coopers Plains, QLD

Farm Supplies Machinery & Equipment Visit website

Features

Title SILVAN 600L P50E LINKAGE TURBOMISER - MIN 65PTO HP (SPRAY HEAD NOT INCLUDED)
Make SILVAN
Price $24,145
Listing Type New
Stock Number GTM-P50N
RefCode TA1162446
Tractor ConnectionLinkage
Tank Capacity - l600

Description

Linkage turbomiser 600 litre sprayer with a 140 L/min centrifugal pump and a 500mm fan. Ideal for vineyards, orchards and greenhouses.

Note: spray head not included

Specifications:

Market: Horticulture. Viticulture.
Tank Size (L): 600
Connection Type: Linkage
Min PTO hp: 65
Pump Size (L/min): 140
Height / Width / Length (mm): 1150 / 1450 / 1100
Product Weight (kg): 220 (dry)
Application: Vineyards, orchards, greenhouse

Features:

Pump: CD32 centrifugal pump, 140L/min. constructed from toughened nylon. Stainless steel shaft & viton/ceramic seal

Fan Size: P50E: 500mm dia. turbine fan, 4000 rpm. Power consumed 40 kw / 55HP.

Nozzles: Air shear.

Gearbox: Multiplication type through multi-grip, multi-vee belt and pulley, over-run free wheeling hub and oil bath fan housing.

Controls: Two sided electric on/off control with control box mounted in cabin. Rotary plate distribution regulators with 15 settings and manual pressure adjustment.

Frame: Galvanised RHS steel construction, cat II linkage.

Tank: 400L Polytuff impact resistant polyethylene construction, calibrated sight line, non spill lids, hydro chemical mixer in larger basket, lids with basket strainers, seperate in-built 18L fresh water hand wash tank.

Agitation: Bypass and pneumatic

Pressure Gauge: Protected 100mm glycerine gauge fitted at front of sprayer

Filtration: Lid strainer and suction line strainer

PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.

HP Required: Minimum 65 PTO HP

Options:

- Vineyard head - 4 heads (4 x 4) (GT55-11)
- Super Cannon head (GT55-1)
- Manual turntable for Super Cannon (GT55-4)
- Hydraulic turntable for Super Cannon (GT55-9)
- Bravo 180S automatic rate controller (GT-24)



All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
