Contact Seller
Features

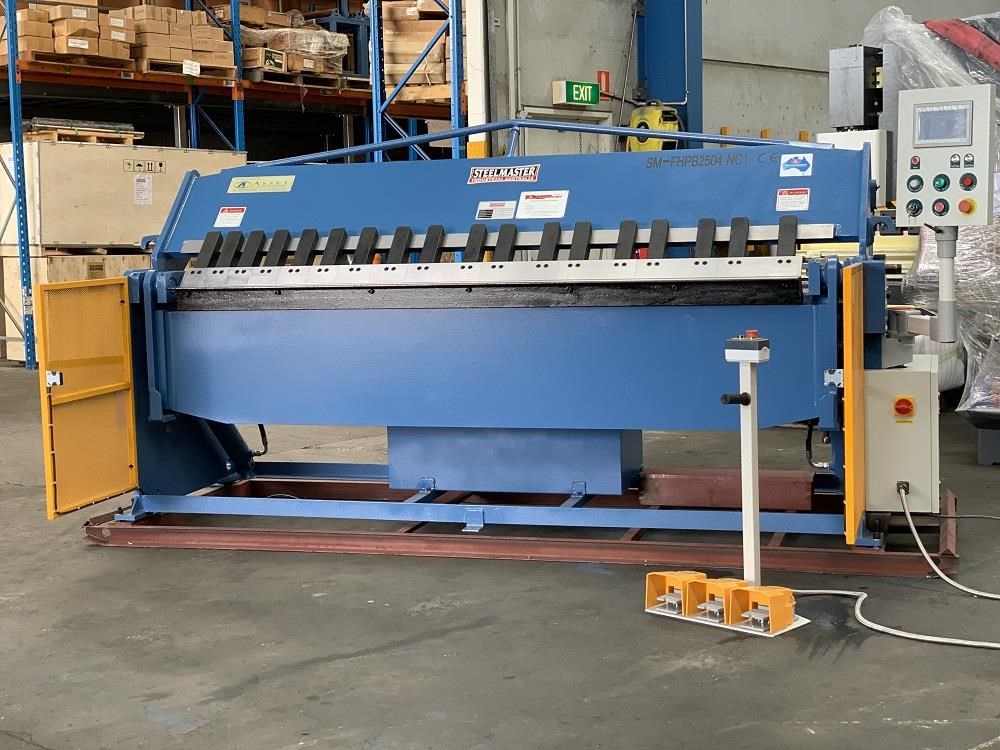

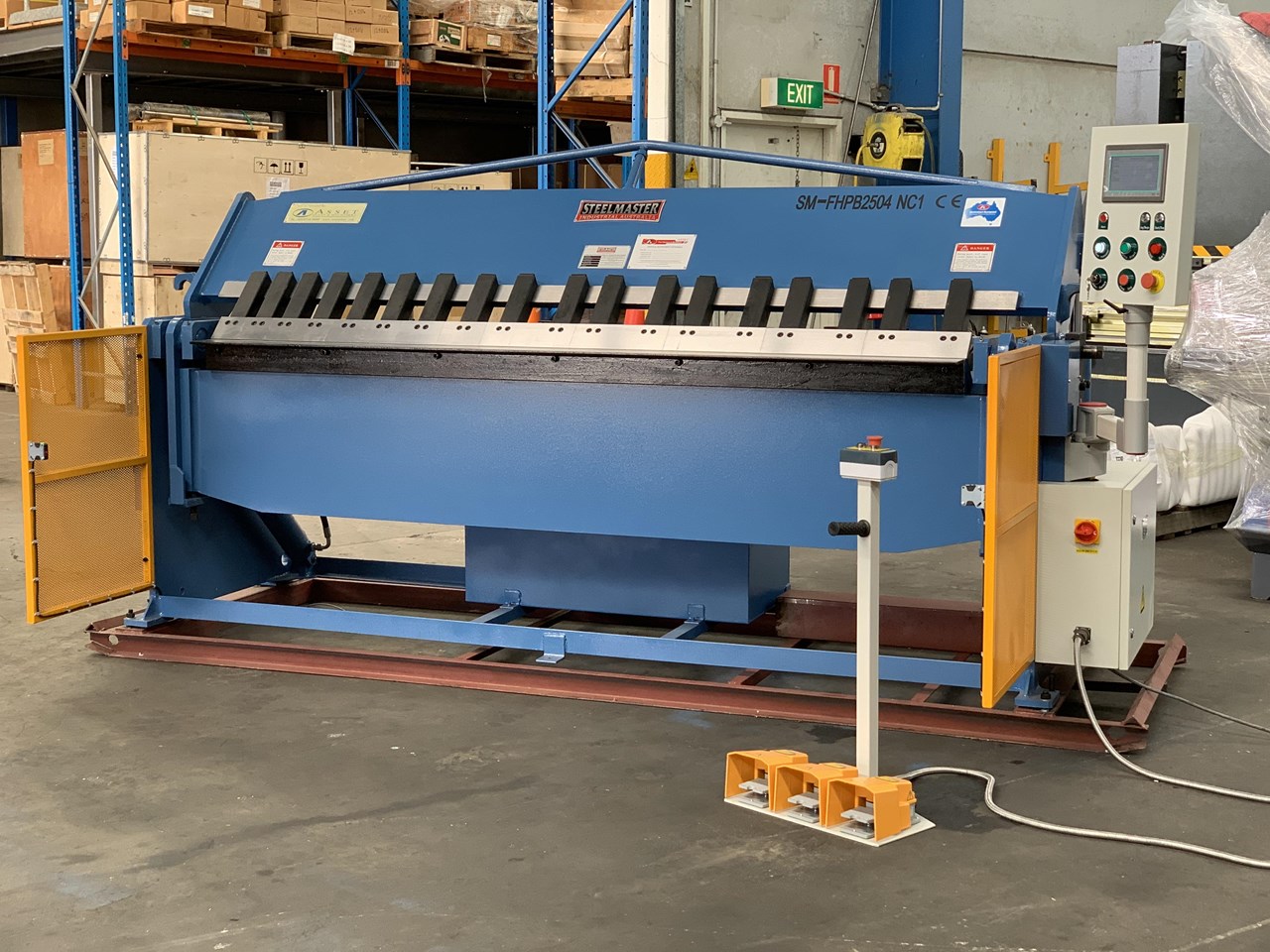

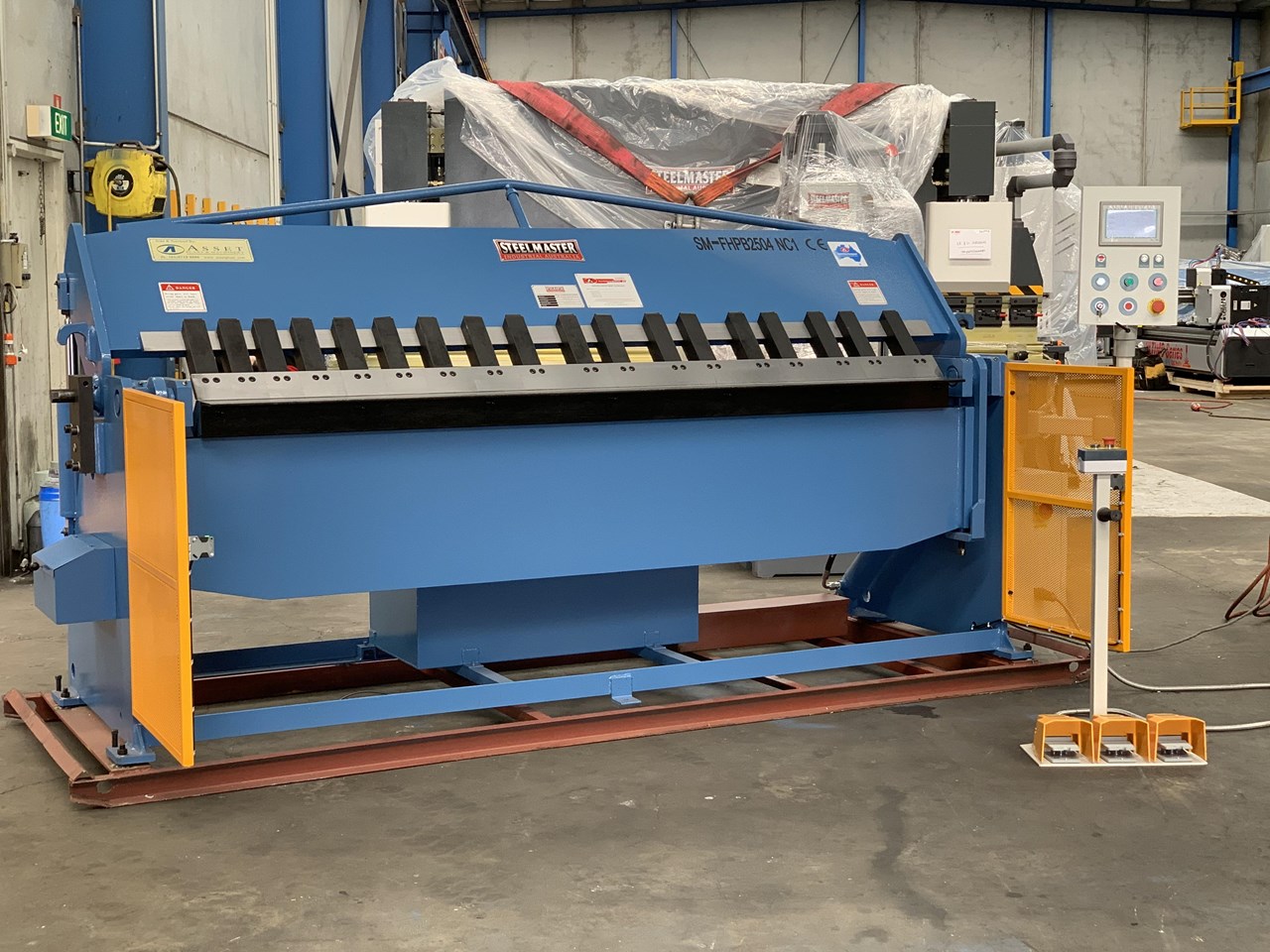

| Title | 2024 STEELMASTER SM-FHPB2504NC1 NC PROGRAMMABLE |
| Type | Engineering - Fabrication |
| Sub Type | Folding Equipment |
| Class | Panbrake |
| Make | STEELMASTER |
| Model | SM-FHPB2504NC1 |
| Series | NC PROGRAMMABLE |
| Year | 2024 |
| Sale Price | 20850 $22,935 + GST |
| Listing Type | New |
| Stock Number | 18-0111 |
| RefCode | TA961809 |
Description
Description!
Price is subject to GST.
Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away.
Quality and ease of operation, our NC1 machine offers a smart 99 station programmable angle setting for quick and accurate folding of all applications.
This can be used both in the single "enter angle and fold" mode, or used in a multi fold programmable folding sequence.
Produced exclusively for Asset by Australian Engineers.
Structural & Operating Features
hydraulically operated bending and clamping beam for efficient heavy duty operation
high structural rigidity from heavy plate steel box construction with continuous welded seams
bending beam powered by dual hydraulic cylinders
fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
precise electric / hydraulic controls with manual inching of bending beam
utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
comprehensive equipment protection from electric and hydraulic overload systems

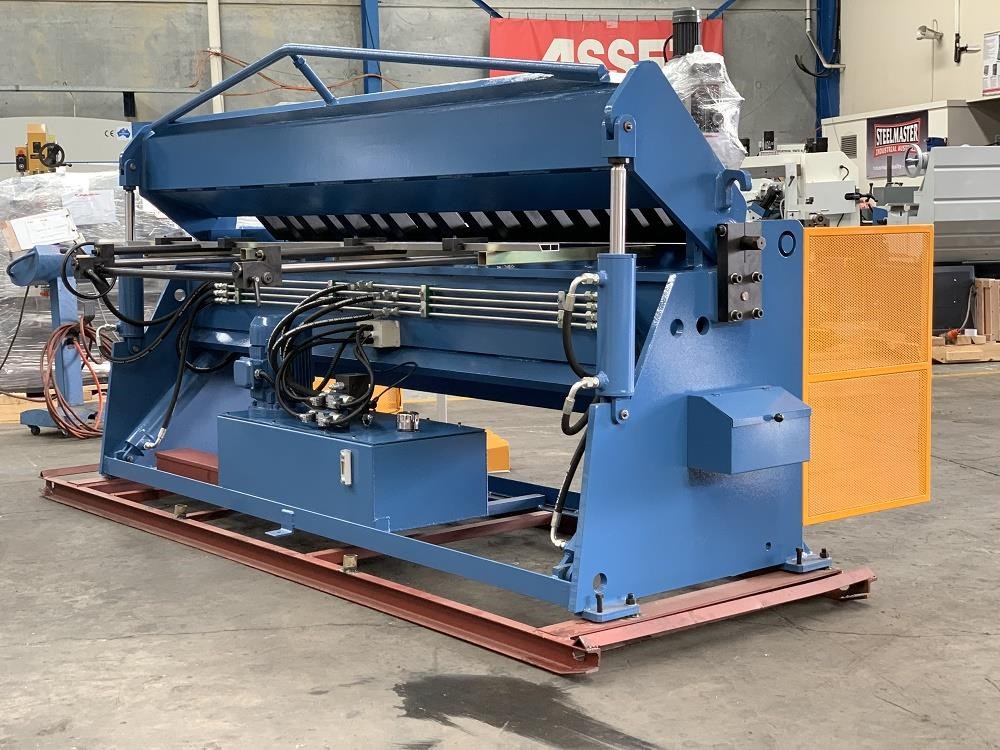

Hydraulic System.
high quality componentry ensures reliable performance for years of continuous operation
powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
unique electric / hydraulic control ensures safe and simple operation
Specifications
high bending angle of 0-135°
greatest depth of box bent 185 mm
powerful motor
200 mm of clamping beam
hydraulically operated bending and clamping beam for efficient heavy duty operation
24 volt control wiring
bending fingers made from hardened material, maximizing life

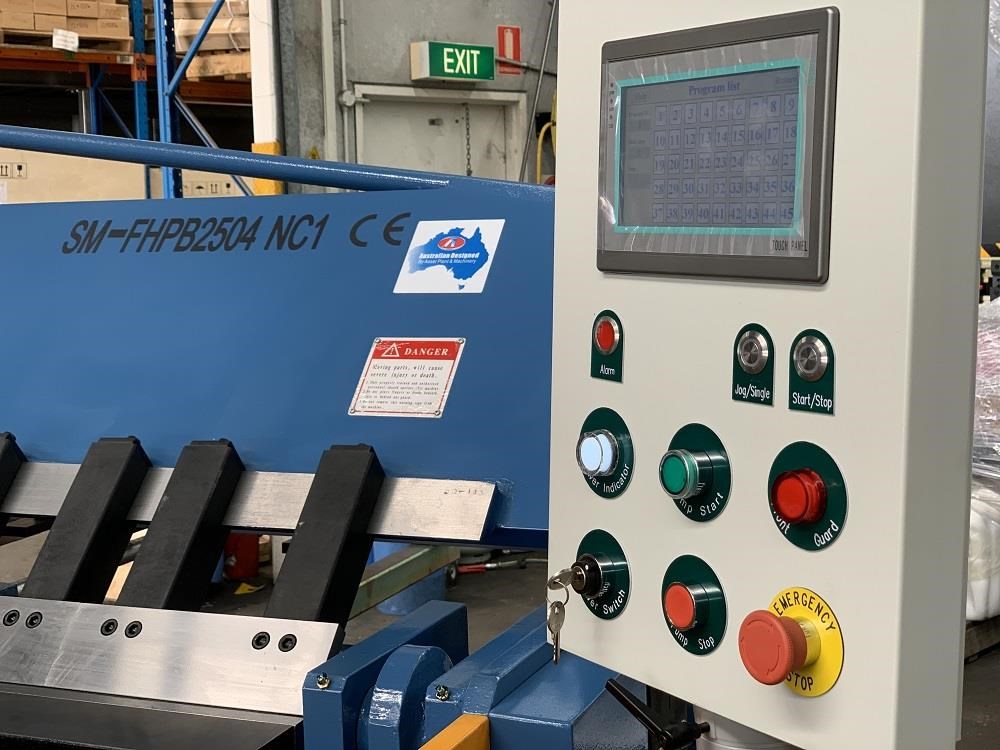

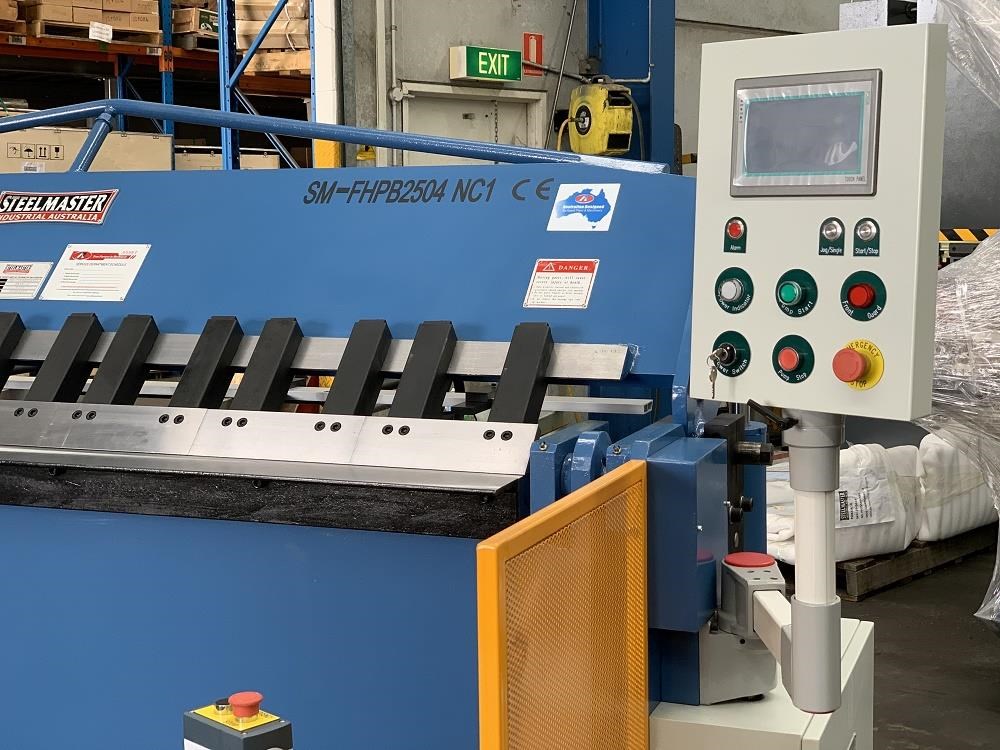

NC1 Programmable Controller
operation in manual, step program, automatic modes and repeat modes
99 station memory setting operating in, manual, automatic and repeat modes
designed to control a 4 ram folder with up, down, clamp and release functionality
Technical Data Snap-Shot
2500mm x 4.0mm bending capacity
o ~ 135 bending range
shipping dimensions - 3050mm x 1250mm x 1650mm
power - 415V 5.5Kw
approx weight: 3300kg
Offering the widest range of quality metalworking Panbrake folders & Support Parts under one roof for delivery Australia wide
Manual Panbrake folders, Hydraulic Panbrake folders, NC Panbrake folders, CNC Panbrake folders & More we have them all including spare parts & more
If you cant find what youre looking for call us on or look online www.steelmastermachinery.com.au
Servicing the Industrial Metalworking Industry since 1997
We have many more items available than listed here.
Asset offer a wide variety of metalworking machinery, spare parts and accessories to suit our range
Industries service range from Engineering, Metalworking Fabrication & Sheetmetal Shops Australia Wide.
Also offering national delivery on metalworking bandsaw & cold saw blades, Punch & Shear Tooling, Pressbrake Tooling, Industrial Conveyors and much more.
We can also offer experienced service technicians in house or onsite to assist Please contact us for further information.
Visit our website, or call us with your requirements
Tell us what you are after, chances are we have it already.
For More information on our machine, go to or contact a Steelmaster industrial Rep
MAKE YOUR NEXT PURCHASE AN "ASSET" TO YOUR COMPANY!
Please contact us for more information.
## STEELMASTER INDUSTRIAL OFFER A COMPLETE RANGE OF NEW & USED METALWORKING MACHINERY FOR SALE AUSTRALIA WIDE ##
