Contact Seller
Features
| Title | SUNRISE IW-60H |
| Type | Engineering - Fabrication |
| Sub Type | Miscellaneous Equipment |
| Make | SUNRISE |
| Model | IW-60H |
| Sale Price | $14,650 GST Exclusive |
| Listing Type | New |
| Stock Number | 994757 |
| RefCode | TA1265539 |
Description

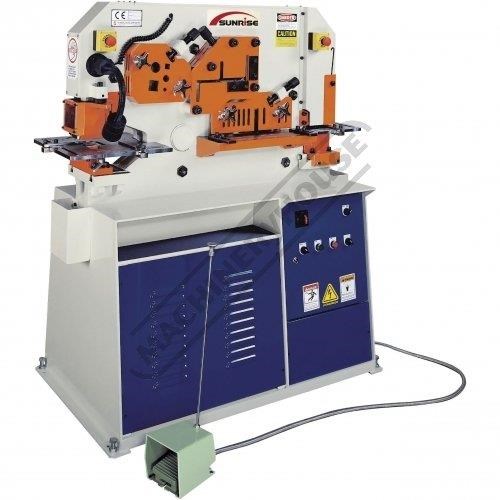

IW-60H Hydraulic Punch & Shear - 60 Tonne Single Hydraulic Cylinder System Includes 6 Sets of Round
SUNRISE IW-60H Hydraulic Punch & Shear - 60 Tonne Single Hydraulic Cylinder System Includes 6 Sets of Round Punches & Dies
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P173
The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.
The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.
The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.
Features:

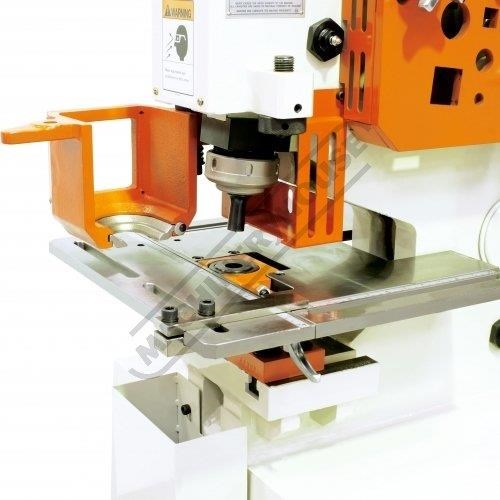

Punching capacity up to 40mm standard
Power inching for easy job set up
Adjustable stroke for faster punching
Punch table and shear table both fitted with guides as standard
All work stations guarded
Most cutting blades are four-sided for long life
Adjustable length stop with rule
Five work stations including notcher
Fully-filtered hydraulic system

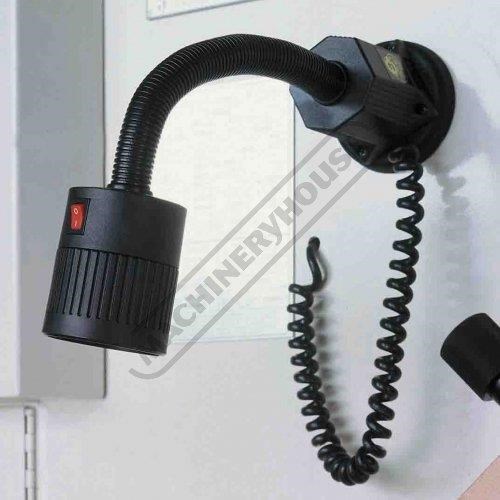

Magnetic-base work lamp
Internal and external mitre cutting of angle iron
Telemecanique electrical components

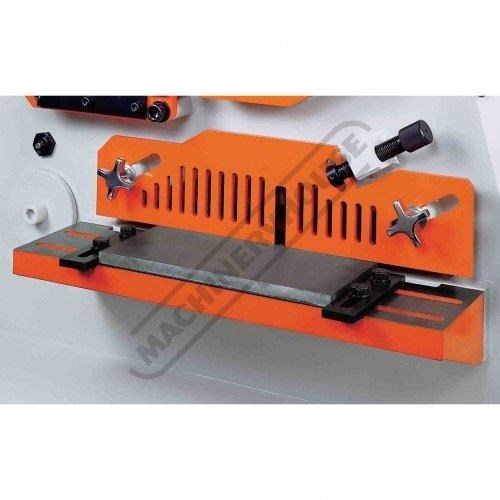

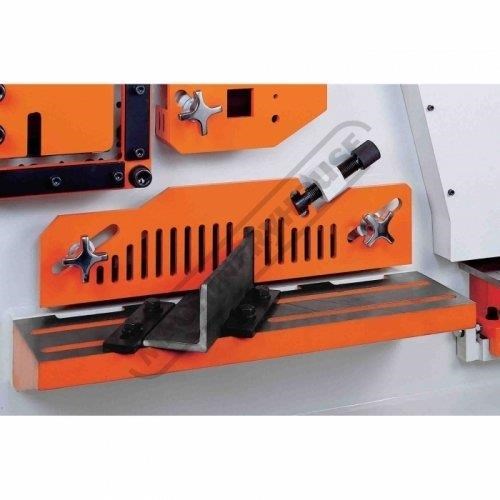

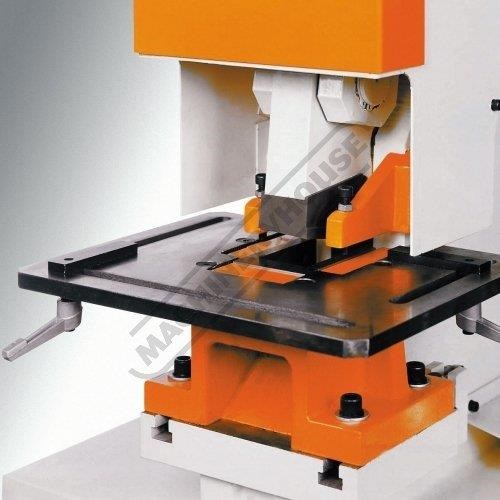

FLAT BAR SHEAR
Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45??
Shaped blade to give minimum distortion

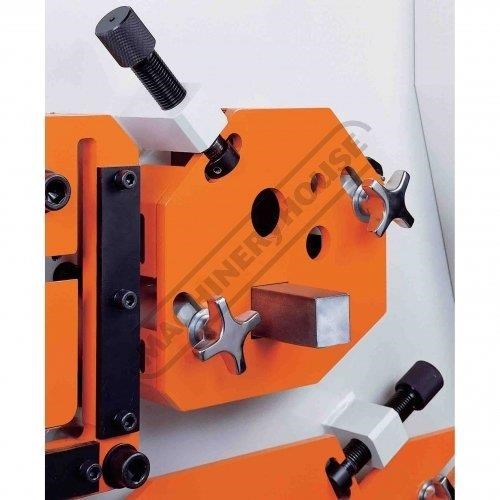

SOLID BAR SHEAR
Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel tee and I-beam sections

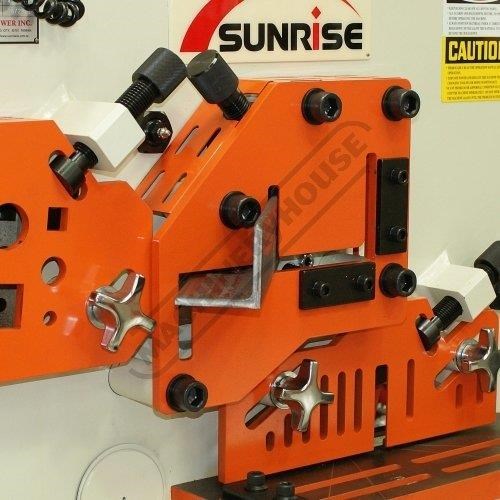

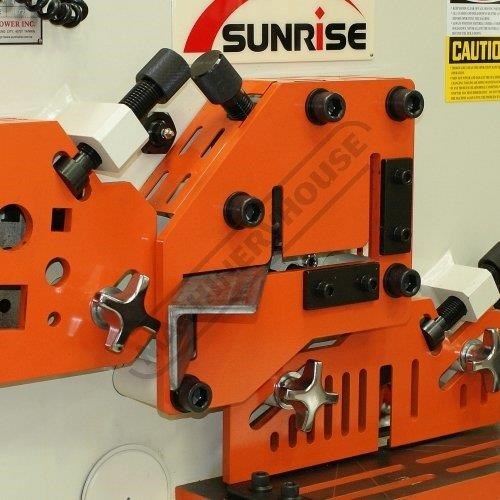

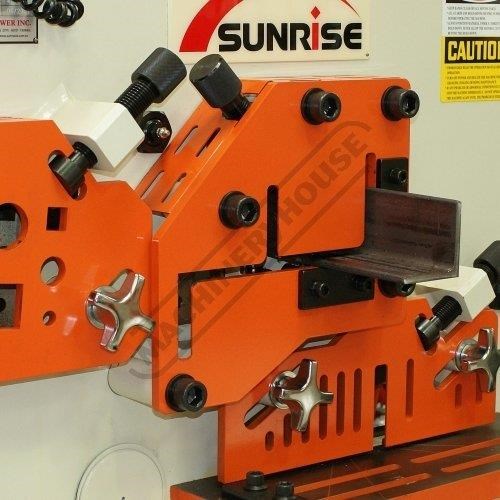

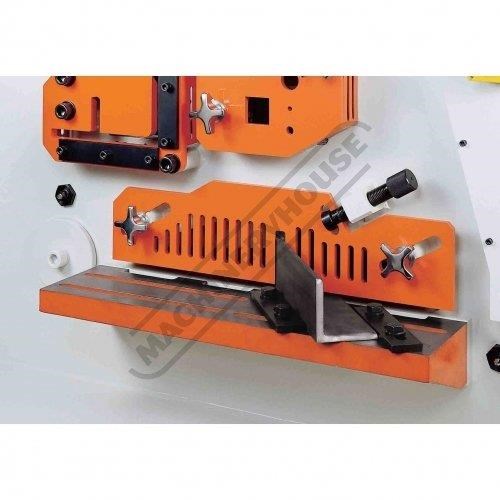

ANGLE SHEAR
Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45??
NOTCHING SHEAR
Ideal for notching of flat bars and angles
Electrically interlocked safety guard for maximum safety and visibility
Gauging table included with stops for precise positioning
Pre-Commissioning:
1. Punch & Shear is run & tested prior delivery
2. Hydraulic oil is included with machine
Includes:
- 6 sets of round punches & dies:
- Punches: 20 22 24 26 28 & 30mm
- Dies: 20.7 23.2 25.2 27.2 29.2 & 31.2mm
- Full safety guarding at all workstations
- 1 metre length stop for shear/crop stations
- Tooling to all workstations
- Punch Shear & Notch support tables
Specifications:
ORDER CODE: P173
MODEL: IW-60H
Punching Pressure (Tonne): 60
Punching Table Type: Manual with Guides and
Punching Table Type: Adjustable Stops
Punching (Diameter x Thickness) - MS (mm): ??28 x 15, ??40 x 11
Punching Throat Depth (mm): 220
Punching Maximum Stroke Length (mm): 55
Punching Cycles (15mm Stroke) - MS (cpm): 29
Punching Work Table Height (mm): 1000
Flat Bar Shear (W x Thickness) - MS (mm): 350 x 15, 210 x 20
Flat Bar Shear - Blade Length - MS (mm): 360
Flat Bar Shear Work Table Height (mm): 1006
Angle Shear 90?? - MS (mm): 100 x 100 x 13
Angle Shear 45?? - MS (mm): 80 x 80 x 8
Angle Flange Trim (mm): 100
Angle Shear Work Table Height (mm): 1236
Round Solid Bar Shear - MS (mm): ??40
Square Solid Bar Shear - MS (mm): 38 x 38
Solid Bar Shear Work Table Height (mm): 1260
Notching - Rectangle - MS (mm): 50.8 x 90 x 8
Notching Work Table Height (mm): 1006
Multi Vee Die Block (mm): ~
Vee Opening Sizes (mm): ~
Max. Tonne Capacity (T): ~
Bending Work Table Height (mm): ~
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1600
To Purchase Online Please Visit The Machineryhouse Website & Search For 'P173'
